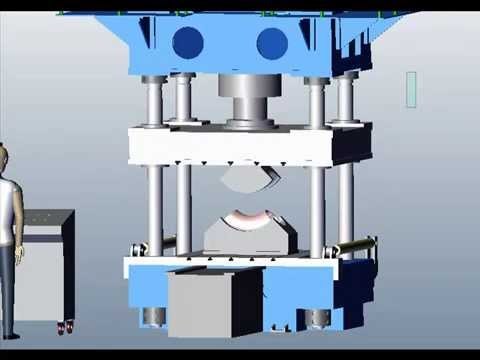

Customized Elbow Hot Forming Machine

Elbow Hot Forming Machine introduction :

Elbow Hot Forming Machine is a traditional product of Dezhou Yaxing Steel Tube Equipment Factory, which is mainly used for producing a variety of elbows in 1D ~ 2.5D.
It combines together extra-short stress line taper mold expanding technology, digital control medium frequency induction heating technology, back pressure free, no back pressure low-energy consumption hydraulic transmission technologies. All push plate gates adopt electromagnetic reversing valve, which has realized gate double control at site and operation desk and increased multiple operation automatic technology such as mother pipe hydraulic align and right clamping.

2. Technology parameter :
1) Mother pipe material i seamless steel pipe, straight welded pipe and spiral welded pipe with carbon steel, alloy steel
2) Elbow OD range: I 20mmi I 1420mm
3) wall thicknessi 5mmi 120mm
4) Bending radius :1-2.5D
5) bending angle : 0-90A
