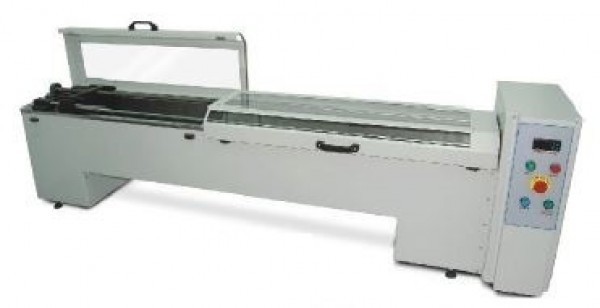

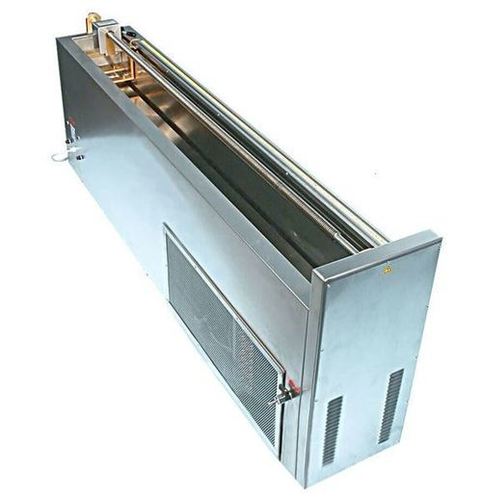

M.s. Ductility Testing Apparatus

SPECIFICATIONS:
The apparatus consists of a Water bath with a thermostatic heater, and a circulating pump to maintain uniform water temperature. One half of the briquette moulds in fixed on a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating threaded shaft with a clutch. The motor and gears to rotate the shaft are housed in a cabinet fixed above the other and of the bath. A pointer fixed to the carrier moves over a scale graduated from 0-110 cm x 1mm fixed on the bath with 0(Zero) of the scale towards the fixed plate slide. The rotating shaft has 2 speeds of travel for the bracket, 5cm/min. and 1cm/min. selected by a clutch. Water bath inside is aluminum, it is an insulated water bath. Water bath is provided with a drain. A heater with thermostatic control is fixed inside the water bath. Control switches for motor, stirrer, heater and indicator lamps are fixed at a convenient place on the water bath. Complete with three briquette mould and one base plate, all made of brass. Operates on 230Volts A.C. single phase.
