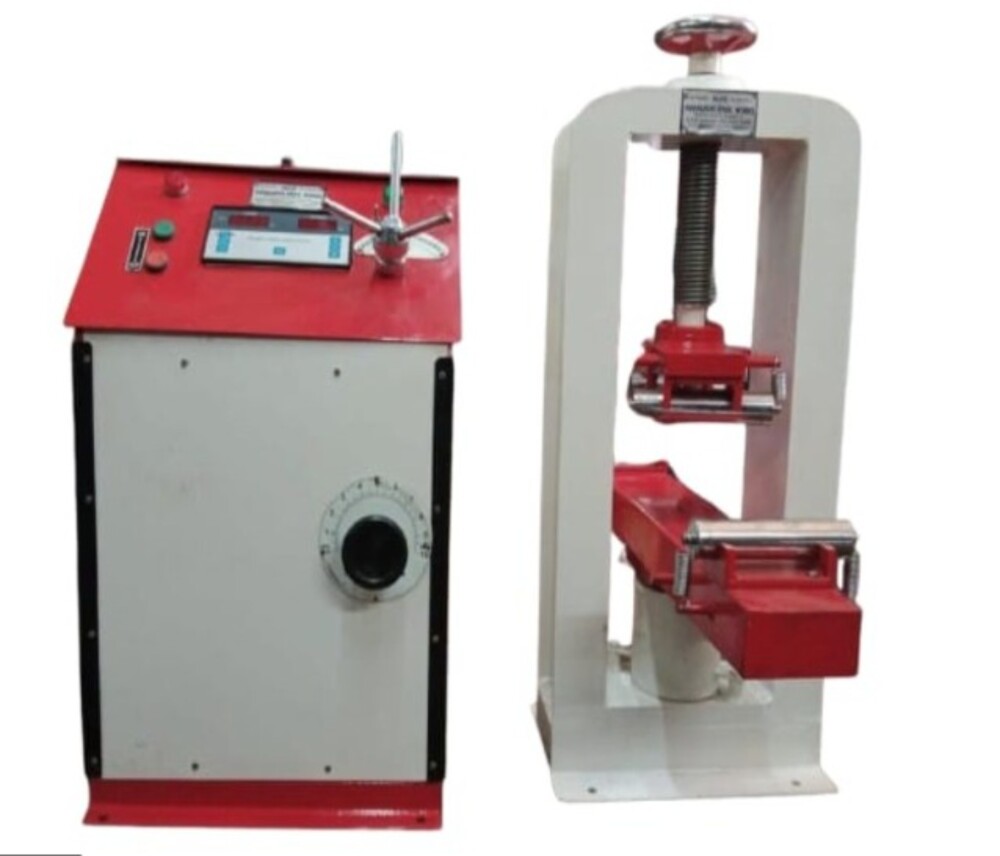

Digital Flexure Testing Machine - Accuracy: 100 %

Used for testing flexural strength (bending strength) of concrete beams/tiles and similar materials.

Supports international standards such as IS 14858:2000 / IS 9399, EN 12390-5, EN 12390-6, ASTM C78, C293, C496, EN 1338 / EN 1340.

Mechanical & Load Features

Capacity / Load Range: Typically 100 kN, 200 kN, 250 kN or higher depending on model.

Load Frame: Rigid steel frame designed to minimize deflection for accurate results.

Test Method: Three-point loading on beam specimens (standard dimensions like 100100500 mm or 150150700 mm).

Digital & Control Features

Digital Load Indicator: Indicates applied load (e.g., 0100 kN 0.1 kN precision).

Closed-Loop Digital Readout and Software: Many models include menu-driven LCD, graphical display of load vs time, and test data storage.

Automatic Test Cycle: Some machines allow automatic execution after entering specimen parameters.

Units Supported: SI, Metric, Imperial. Data memory for tests.
