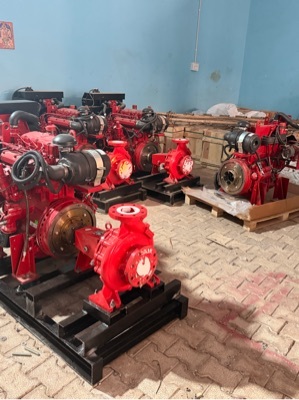

Diesel Engine Pump For Fire Fighting

Our organization have been actively engaged in manufacturing and supplying a premium quality Diesel Engine Pump For Fire Fighting in Wenzhou, Zhejiang, China.

Product introduction:
Diesel engine pump for fire fighting is of sub-horizontal, multi-stage single-suction and centrifugal, using state-recommended hydro module. Pump is efficient, reliable, and durable with low noise performance, easy maintenance and wide scope of usages.

Application:
This pump is applied in pumping fresh water, river water, corrosive water, impurity water, dirty water, etc. Such as

1. Irrigation
2. Fire fighting
3. Industry water
4. Mine water pump
5.Transport water with salt or any other impurity things
6.Marine

Working Conditions
Rotating speed: 3600r/min, 1800r/min, 2960r/min, 1480r/min
Medium: clean water or other liquids similar to clean water in physical and chemical properties
Medium temperature: -10 ~ 80A A C, 400A A C available under special design
Ambient temperature: Up to 40A A C
Range of capacity:1.8~850m3/h
Range of head: up to816m
Stage:1~12 stage
Pump Construction
Casing/impeller:cast iron, stainless steel, copper, bronze,
Shaft: carbon steel 45#, stainless steel
Mechanical seal:graphite/silicon carbide/tungsten carbide

Advantages
1.Directly coupled, vibration proof and low noise.
2.Same diameter of inlet and outlet.
3.C&U bearing , which is the most famous brand in China.
4.Circulating flow cooling ensure mechanical seal long life.
5.Small foundation required that will saving construction investment by 40-60%.
6.Excellent seal that is no leakage
