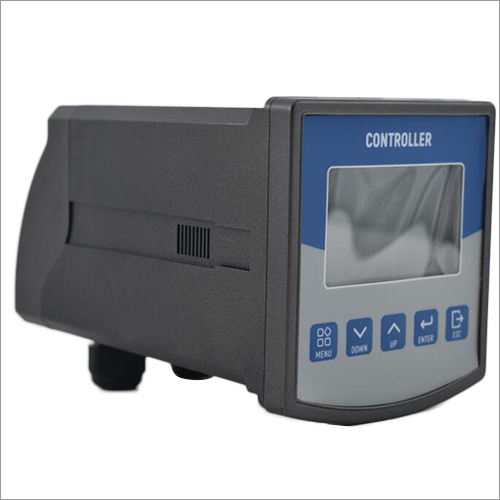

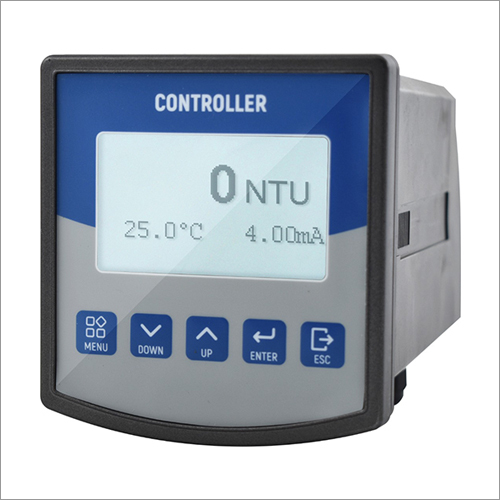

Dax Digital Controller Application: Industrial

Name: Dax Digital Controller
Availability: InStock

Price Trend: 30000.00 - 60000.00 INR / Piece

Get Latest Price

Minimum Order Quantity :

100 Piece

In Stock

Frequency	50-70 Hertz (HZ)
IP Rating	IP20 (Front side: IP54 Optional)
Phase	Single Phase
Usage & Applications	Suitable for Temperature, Process, and Auxiliary Control Functions
Display	Digital
Current	5A max
Installation Type	Panel Mount
Switch Type	Relay or SSR Output Switch
Measuring Range	Configurable, depends on sensor
Mounting Type	Panel Mount Type
Connectivity Type	Terminal Block
Output	Relay / SSR / Analog Output (configurable)
Protection Level	Other, Panel Mount Protection
Features	Auto-tuning PID, Digital Calibration, Universal Input, User-Friendly Interface
Pole Type	Not Specific
Sensor Type	Compatible with RTD, Thermocouple (J, K, T, R), Voltage, Current
Product Type	Dax Digital Controller
Operating Temperature	0AdegC to 55AdegC
Working Temperature	0AdegC to 55AdegC
Input	Multiple digital inputs, configurable
Application	Industrial
Supply Voltage	100-240V AC
Accuracy	A+-0.5% F.S.
Dimension (LWH)	96 x 96 x 65 mm
Weight	Approx. 250 g
