Cyclone Separation Apparatus

A Cyclone Separator is a vertical cylinder with the inlet stream introduced tangentially near the top, giving the suspension a spinning rotation in the cylinder. The centrifugal force acting on the particles tends to throw them radically to the sides of the cylinder as they spiral downward to a conical bottom where they are removed.
A collector is fitted at the bottom & the induced draft blower is used to create the air stream.
The classified air leaves the cyclone through a pipe extended down into the cyclone & passes through blower delivery side fitted with fine screen cloth bag to avoid dust expansion in the laboratory.

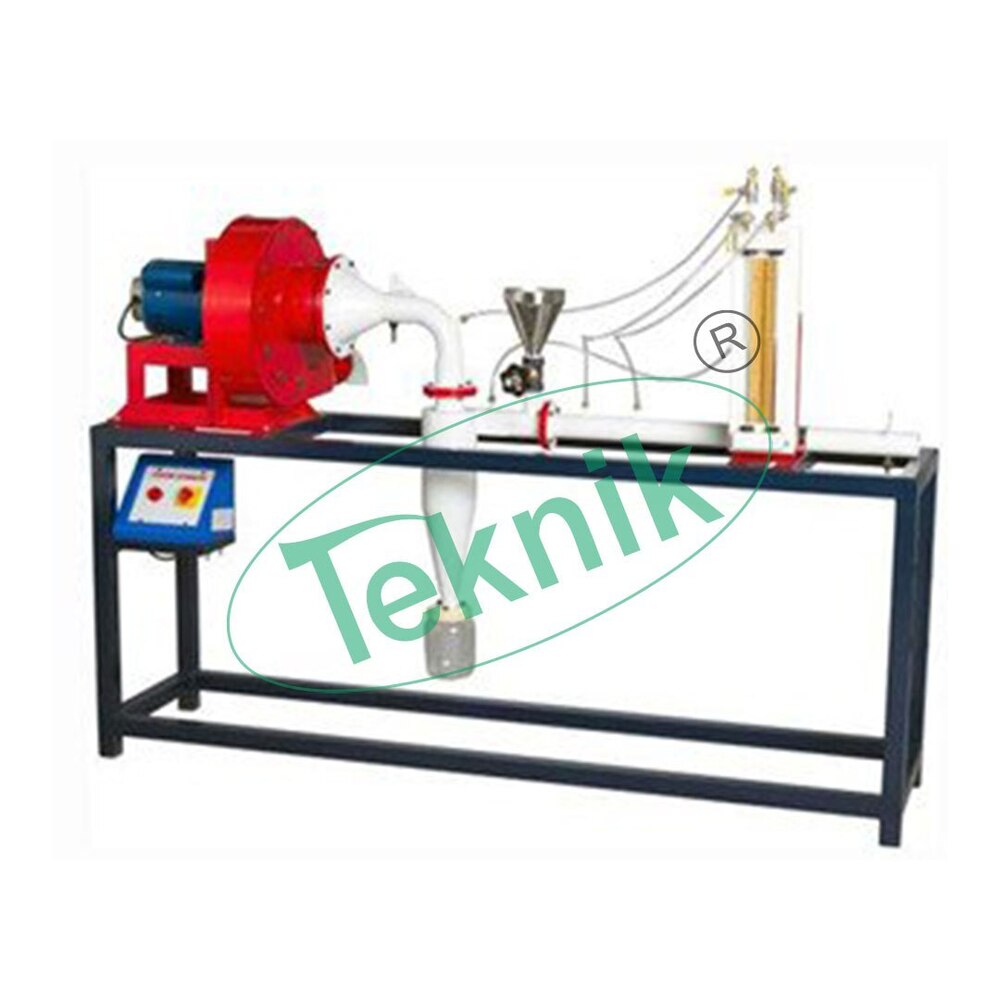

The setup consists of I.D. blower connected to discharge side of Cyclone Separator. A flow meter with manometer is provided to measure the flow rate of air. Pressure drop in the Cyclone is measured by water manometer. Solids are collected in the collector fixed at the bottom. The set-up is complete with flow Control & by-pass valve.
Product Specification
Material: Stainless Steel
Filter Surface Area (m2): Area 2 m x 1 m.
Voltage (V): 220v
Dimension (L x B x H): 100mm
Usage Application: lab experiment
Color: blue
