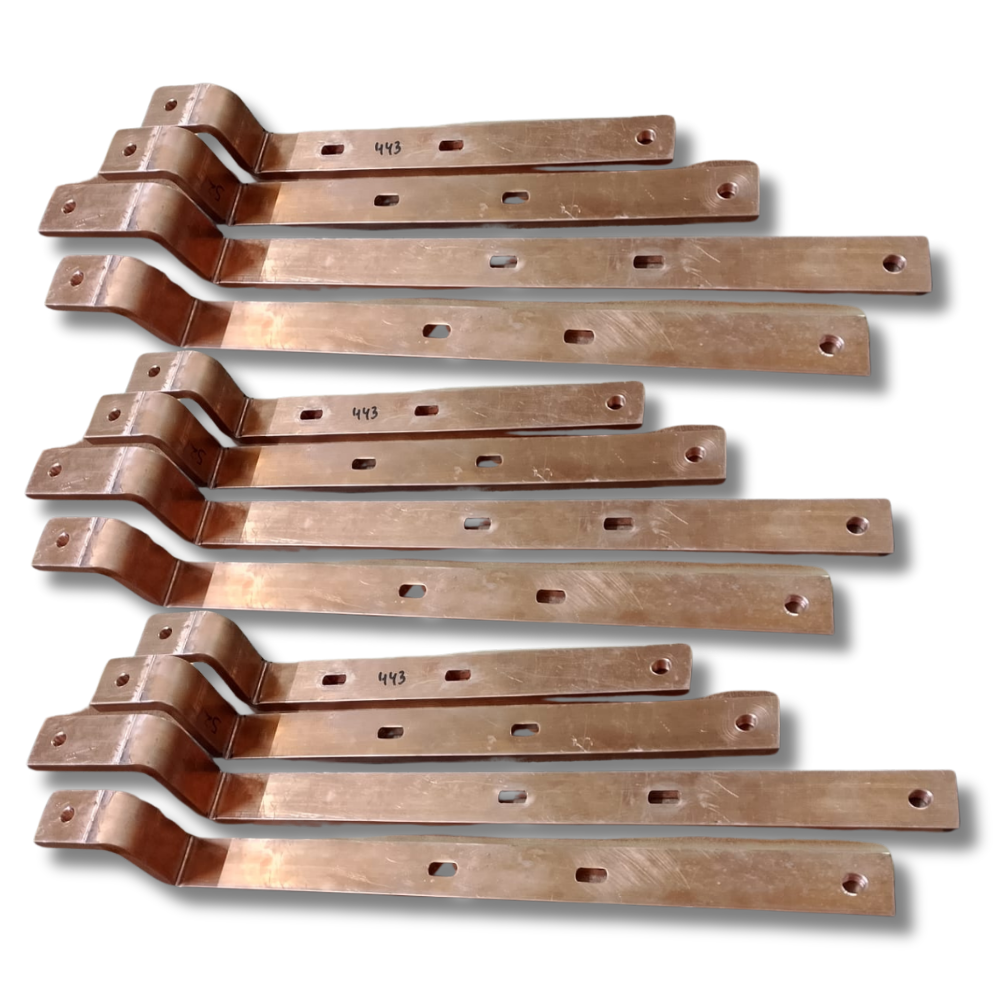

Copper Power Panel Busbar - Color: Brown

Product Overview:

* Designed for high-current applications inelectrical panelsandpower distribution systems.

* Manufactured from99.9% pure ETP grade copperfor superior conductivity and mechanical durability.

* Ensuressafe, low-resistance connectionsfor reliable and efficient energy transfer.

* Customizable to suit diversepanel layouts,current loads, andproject requirements.

Applications:

Ideal for use in a wide range of systems, including:

* Main & Sub Power Distribution Panels

* Control & Relay Panels

* LT/HT Electrical Panels

* Switchgear Assemblies

* Transformer & Generator Connections

* UPS & Backup Battery Systems

* Solar Inverters & ESS Units

* EV Charging Infrastructure

* Industrial Machines & Utilities

Current Rating:

* 100A to 5000A, based on cross-section and design.

* Fully customizable for specific current load demands.

Busbar Dimensions (Customizable):

* Thickness :2 mm to 5 mm

* Width :20 mm to 50 mm

* Length :Up to 3 meters

* Hole Size & Pitch :As per drawing or layout

Material & Finish Options:

* Material :High-Conductivity Electrolytic Copper (ETP, 99.9%)

* Surface Finish Options:

* Bare Copper Maximum conductivity

* Tin-Plated Enhanced corrosion resistance

* Silver-Plated Ideal for high-temp environments

* Insulation Types :PVC, Heat Shrink, Rubber Sleeve (multi-color options)

Design Variants:

* Shapes : Straight, L, U, Z, Bent or Custom-Formed

* Terminal Holes : Pre-drilled round/oblong or slotted holes

* Edge Profiles : Sharp, Chamfered, or Rounded

* Assemblies : Single-layer or stacked/multi-layer busbars

Insulation & Safety Features:

* Withstands up to1000V AC(depends on insulation type)

* Flame-retardant options for critical safety

* Color-coded sleeves forphase identificationand safety

Customization Capabilities:

* Designed percustomer drawings or load requirements

* OEM support for high-volume and branded panel manufacturing

* Laser marking, barcode, or label integration

* CAD/CNC-based production for tight tolerance and precision

* Custom fabrication : cutting, bending, punching, and surface treatment

Corrosion Resistance:

* Tin/Silver plating options ensure longer life and consistent contact

* Oxidation-resistant finish
