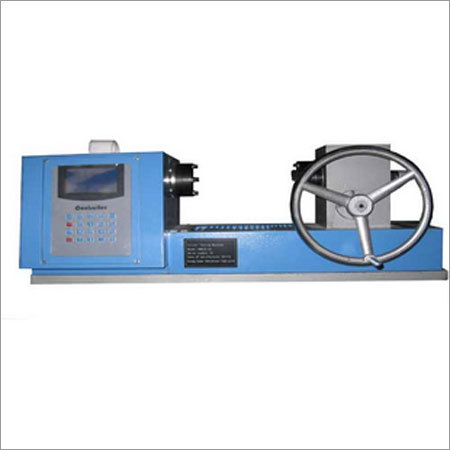

Computer Control Torsion Testing Machine

These Computer Control Torsion Testing Machine controlled by computer, rotates load through alternating servo motor and cycloidal gear reducer. Torque and twist angle detection uses the high-precision torque sensor and a photoelectric encoder; Computer displays dynamically the curve of test torsion angle and torque, rate of loading, peak of power and so on. It is a perfect testing instrument project quality testing section, universities and colleges, research institution and industrial and mining enterprise.

Specifications of Computer Control Torsion Testing Machine :
1 Maximum torque of test(Nm): 500\1000\2000;
2 Relative error of torque: a A 1%;
3 Range of torsion angle measure: 0~9999.9A ;
4 Relative error of torsion angle: a A 1%;
5 Display of torsion angle: Minimum resolution 0.1A ;
6 Diameter of clamping sample(mm): I 6~I 20mm;
7 Maximum distance between two collets(mm): a Y 500;
8 Angle of twist in small-angle measurement: Minimum of resolution 0.0001A ;
9 Range of reverse speed: 0~540A /min, Variable speed;
10 Precision of speed: A 1%;
11 Direction of test rotation: Bidirectional;
12 Power supply: 220VA 10%, 50Hz
