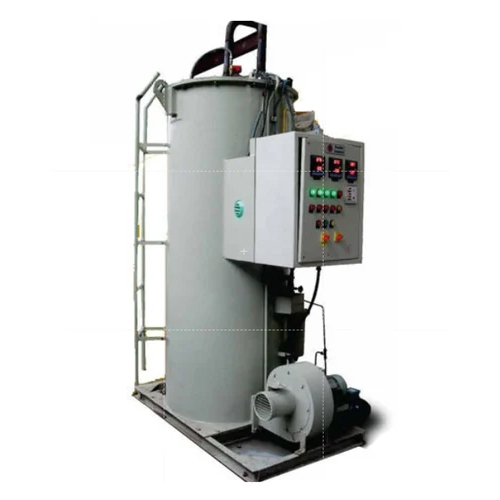

Coil Type Boiler - Water Tube Design 600 Kg Per Hour Capacity | Fully Automatic, Seamless Astm 106 Gr B Coils, Enhanced Safety Features

Coil Type BoilersInstallation-Grand Hotel, BombayEquipment- Water Tube Coil BoilerCapacity-600 kg per Hour 10.54 kg per sq cmOperation-Fully Automatic, operating on pressure of steam.Manufacturing Range-100 to 1500 kg per HourOperating Fuels-FO, LDO or HSD/GASSpecial FeaturesCoils are made from seamless Pipes ASTM 106 Gr B-Schedule 40Spring loaded safety valve on steam outlet manifold is providedOperating pressure switch is provided on steam outlet manifoldSeparate safety pressure switch lock outs the burnerLow water and no water in coil lock out the burnerFlame failure Photo cell provided makes operation safe.These coil type boilers are manufactured in head of small Industrial Boilers as per new regulation act of Indian Boiler Act in which volumetric capacity of coil is controlled to 150 liters. Boiler is suitable for operating Pressure upto 12 kg per sq. cm. These Boilers are now IBR approved & manufactured under inspection of Boiler inspectors.Coil type boilers with water cooled combustion chamber for solid fuel fired are also available in the range from 100 to 1500 kg per hour.
