Centrifugal Pump Test Rig By Unicon Instruments

Centrifugal Pump Test Rig

Closed Circuit Type With S.S. Tanks, ISI Mark Pumps & Motors, Powder coated

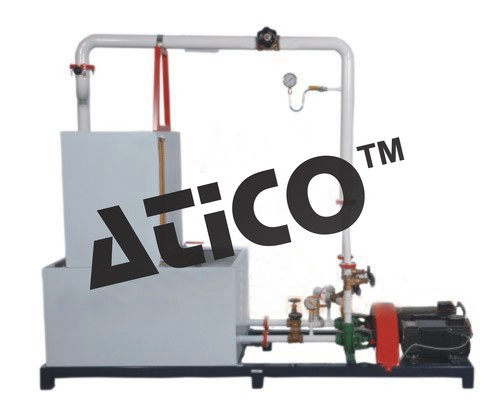

The closed circuit test rig consists of a "kirloskar make" monoblock centrifugal pump. The pump is provided with a vacuum gauge on suction pipe and a pressure gauge on discharge pipe. The gate valve is used to adjust the head on the pump. The discharge is measured by measuring tank / water flow meter. The input power is measured by energy meter.

Specifications:

l. Centrifugal monoblock- 1 h.p.

2. Pressure gauge and vacuum gauge for measuring the head.

3. Measuring tank of 400x400 x400 mm

OR

Water flow energy meter for measuring the discharge.

4. Stop watch.

5. Sump tank of sufficient capacity.

6. Energymeter to measure input power.

A technical manual accompanies the equipment.

FeaturesA-:

1. The equipment is coated with an attractive and anticorrosive powder coating.

2. The equipment consists of ISI standardA-

(i) Monoblock ------------------------- Kirloskar make

(ii) Energymeter ------------------------- Maxwell Jaipur make

(iii) Water flow meter ------------------------- Kranti/Anand make.

Services required :A-

i) 440 v, 15 A, stabilized three phase A.C. supply.

ii) Floor area-2 mx2mxl.5m height

iii) Tachometer for speed measurement (can be supplied at extra cost)
