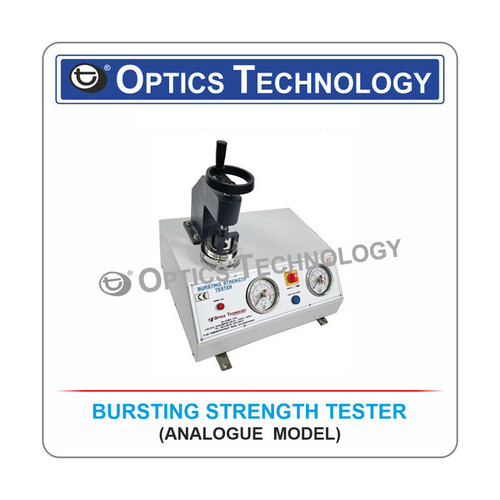

Bursting Strength Tester - Heavy Duty Cast Iron Body, 30.48mm Clamp For Paper & 31.50mm Clamp For Board | Adjustable Clamping Force, Sensitive Pressure Gauge With Peak Value Indicator

We are instrumental in providing to our valuable customers excellent quality Bursting Strength Tester which is available with following Features:-
Heavy Duty Cast Iron Body.
Compression foot of plexiglass with clamping plate of acid proof steel. Uniform control piston speed.
Adjustable clamping Force Motor suspension in Rubber cradle.
Wheel Handle actuates the raising and lowering ot the upper clamp.
The Bursting Pressure, at the time of rupture is recorded on a sensitive pressure gauge.

TECHNICAL SPECIFICATIONS :-
FOR PAPER :-
Specimen Clamp-Upper part : 30.48mm + 0.05
Specimen Clamp-Lower Part : 33.07mm + 0.05
Pressure Speed : For Paper 95 + 10 ml/min

FOR BOARD :-
Specimen Clamp-Upper part : 31.50mm + 0.05
Specimen Clamp-Lower Part : 31.50mm + 0.05
Pressure Speed : For Paper 170 + 10 ml/min
Motor : 150 W, 220 V AC Single Phase / AS PER FOR ORDER

All Pressure gauges are statically and dynamically calibrated.
The Gauges are provided with a quick coupling and a device which prevents air from entering in the hydraulic system, When fitting the pressure gauge.
One pressure Gauge is fitted as standard having peak value indicator. Two way valve is provided for extra pressure gauge.
Units supplied with "C" spanner.
3 Spare Diaphragms and Glycol Topping-up Fluid.

Clients can avail this Bursting Strength Tester at industry leading prices from us.
