B.o.d. Incubator Ets - 56a - Stainless Steel & Mild Steel, 455 X 410 X 610mm, 340l Capacity , Dual Chamber Air Circulation, Digital Temp Control, Lockable Door

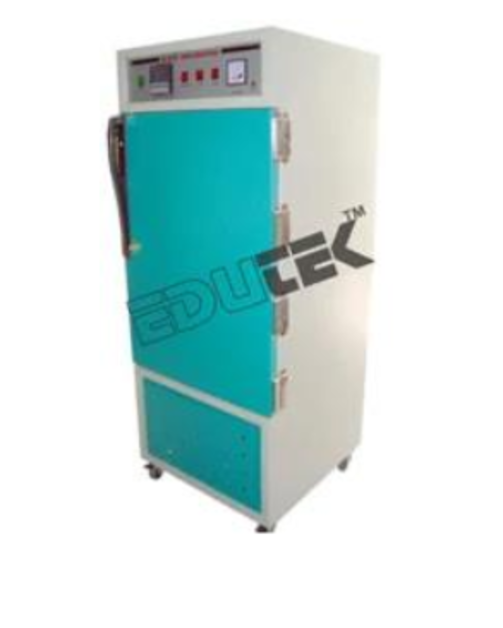

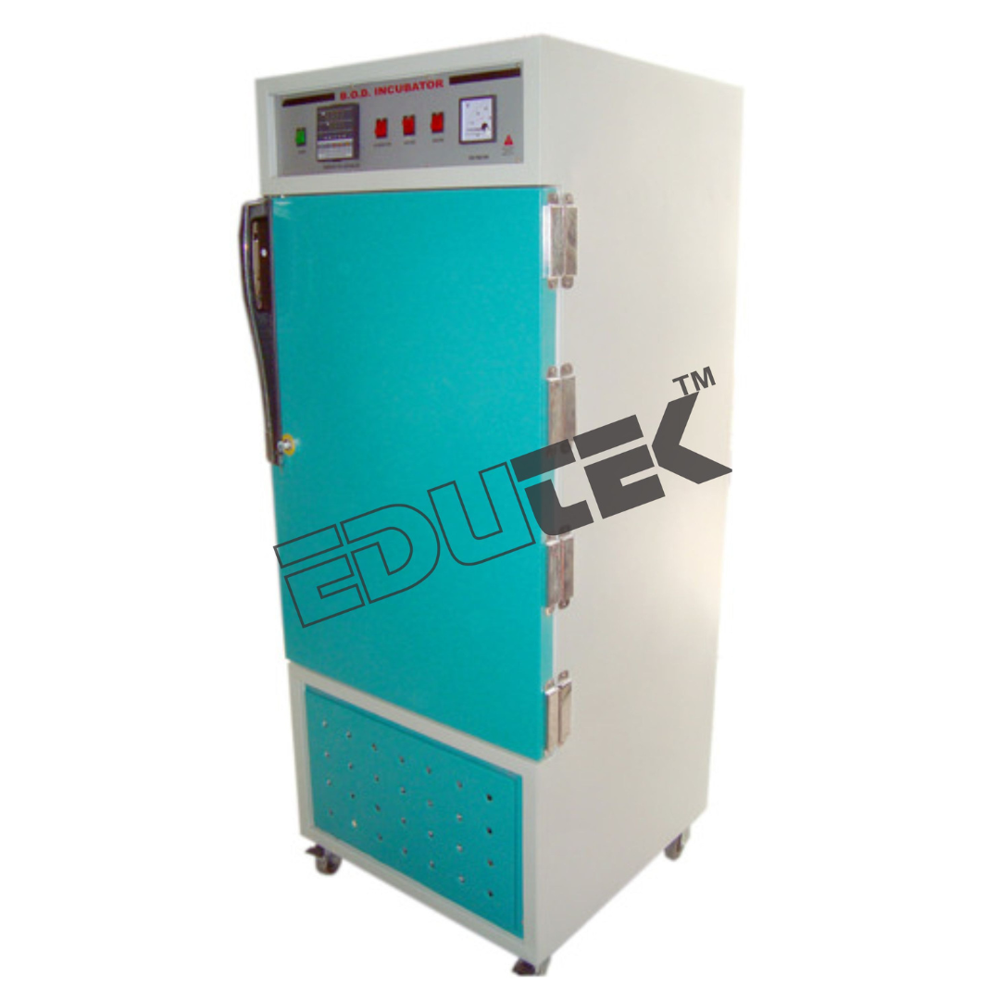

B.O.D. INCUBATOR ETS - 56A

B.O.D. (Bio-chemical Oxygen Demand) Incubator (Low Temp.) : Double walled construction. Inner chamber made of anodized aluminum sheet/stainless steel with self supports for wide range of shelf spacing. Supplied with two/three removable perforated shelves. Clear inner door of acrylic sheet allows inspection of material without disturbing chamber temperature. Outer double walled door is provided with magnetic gasket, lock & key and door operated lamp illumination. The cabinet is mounted on castors.

Temperature is controlled by a micro processor digital temperature controller cum indicator from 5C to 50C 1C. Inner air circulating system provided for uniform temperature in the whole chamber. A silent sealed compressor with protective devices along with fan cooled condensing coil are placed below the chamber for safe and efficient working.

Control panel provided at top of cabinet has three indicator lamps for mains, heating & cooling, voltmeter, temp. controller, cord-plug etc. and equipment is workable on 220 V AC 50 Hz single phase.

Material - Inner SS and Outer MS

Note: Use of a suitable Voltage Stabilizer is essential.
Size of chamber in mm (WxHxD) Capacity (cu ft.)
455 x 410 x 610 4.00
500 x 800 x 415 6.10
565 x 865 x 550 10.00
650 x 900 x 550 12.00
700 x 900 x 650 15.00

Optional Arrangements Available :

Digital temp. indicator-cum-controller with computer data logger.
Therm o-hydro-graph.
Timer : 0-24 hrs.
Day/night cycle.
CO2 / Air mixture inlet nozzle.
Audio-visual alarm.
Automatic Voltage Stabilizer 3 KVA.
Humidity System (Steam) for BOD Incubator

BOD Incubator can be provided with humidity arrangement.
Humidity is created by condensation of steam generated by heaters dipped in water. Humidity is controlled by imported humidity from ambient to 95% 3% RH.
