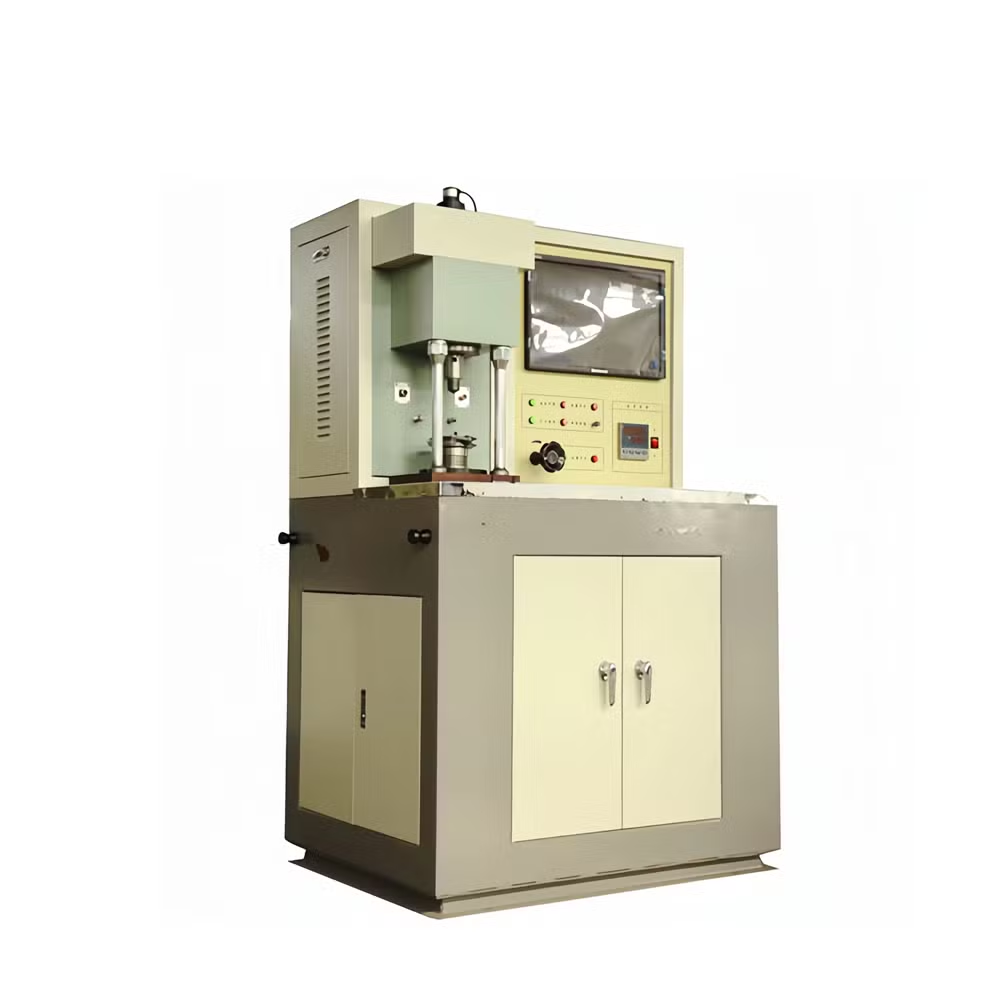

Block-on-ring Tribometer Tester (Type 1) - Stainless Steel Frame, 900x700x1500 Mm, 1.5 Kw | Programmable Speed To 2000 Rpm, Touchscreen Control, Digital Friction Measurement, Safety Interlocks

Block-on-ring Tribometer Tester (Type 1) - Stainless Steel Frame, 900x700x1500 Mm, 1.5 Kw | Programmable Speed To 2000 Rpm, Touchscreen Control, Digital Friction Measurement, Safety Interlocks

Price: 1300.0 USD / Unit

Get Latest Price

Minimum Order Quantity :

1 Unit

In Stock

In Stock

Product Specifications

Test MaterialMetals, alloys, polymers, coatings, lubricants
Number of SpecimensSingle Specimen Test at a Time
Test RangeLoad: up to 200 N; Speed: 0-2000 rpm
TemperatureRT to 200C (with integrated heating system)
Port SizeStandard laboratory gas connection ports, 8 mm OD
HumidityAmbient, or controlled with optional environmental chamber
Gas PressureOptional feature for inert gas atmosphere, up to 2 bar
Specimen SizeBlock: 10 x 10 x 20 mm; Ring: 40 mm OD x 10 mm width
TypeOther, Block-on-Ring Tribometer Tester (Type 1)
MaterialMild Steel, Stainless Steel (main body frame), precision machined alloys
PowerOther, 1.5 kW
Power SourceElectric, AC 220/240V, 50/60 Hz
Dimension (L*W*H)900 x 700 x 1500 mm (approx.)
WeightApprox. 200 kg
UsageTribology testing, friction and wear measurement
ApplicationMaterial testing laboratories, academic research, industrial quality control

Company Details

Standard Groups, Established in 2003 at Shanghai in Shanghai, is a leading Exporter,Manufacturer,Supplier of Textile Testing Equipment in India. Standard Groups is one of Trade India's verified and trusted sellers of listed products. With extensive experience in supplying and trading Block-on-Ring Tribometer Tester (Type 1), Standard Groups has made a reputed name for itself in the market with high-quality 2-Station Seatbelt Webbing Abrasion Tester for ISO 14934 Automotive Safety Belt Testing, 20L Spherical Explosion Tester, 20L Spherical Explosion Tester ASTM E1226 Dust Explosion Testing Equipment, etc.
Focusing on a customer-centric approach, Standard Groups has a pan-India presence and caters to a huge consumer base throughout the country. Buy Textile Testing Equipment in bulk from Standard Groups at Trade India quality-assured products.

Business Type

Exporter, Manufacturer, Supplier

Employee Count

100

Establishment

2003

Working Days

To

Related Products

Explore Related Categories

More Products From This Seller

Seller Details

Trusted SellerTrustedSeller

Shanghai, Shanghai

Proprietor

Mr. Daizy Qin

Members since

1 Years

Address

No. 280, Jiugan Road, Songjiang District, Shanghai, Shanghai, 00000, China

Report incorrect details

Compare With Similar Products

Buyer Feedback

3

Price Or Price Range

1300.0 USD ($) (Approx.)

6000.0 USD ($) (Approx.)

10000.0 INR (Approx.)

Minimum Order Quantity

1 Unit/Units

1 Unit/Units

1 Piece/Pieces

Test Material

Metals, alloys, polymers, coatings, lubricants

Metals, Ceramics, Polymers

Number Of Specimens

Single Specimen Test at a Time

1 block and 1 ring

Test Range

Load: up to 200 N; Speed: 0-2000 rpm

Friction force 0-200 N, Wear Range 0-2 mm

0 aEUR" 1000 N

Temperature

RT to 200C (with integrated heating system)

Ambient to 200C

Port Size

Standard laboratory gas connection ports, 8 mm OD

1/4 inch gas inlet

Humidity

Ambient, or controlled with optional environmental chamber

15% - 85% RH

Gas Pressure

Optional feature for inert gas atmosphere, up to 2 bar

Up to 0.6 MPa (for controlled atmosphere tests)

Specimen Size

Block: 10 x 10 x 20 mm; Ring: 40 mm OD x 10 mm width

Block: 6.35 x 12.7 x 19 mm; Ring: 40 mm outer dia x 10 mm width

Standard ring: 152 mm circumference A-- 12.7 mm width Millimeter (mm)

Type

Other, Block-on-Ring Tribometer Tester (Type 1)

Other, Block-on-Ring Tribometer Tester (Type 1)

Material

Mild Steel, Stainless Steel (main body frame), precision machined alloys

Mild Steel, Aluminum Alloy (Main Body & Framing)

Powder-coated Steel Body

Power

Other, 1.5 kW

Other, 1.5 kW

Power Source

Electric, AC 220/240V, 50/60 Hz

220V AC, 50 Hz

Dimension (L*W*H)

900 x 700 x 1500 mm (approx.)

980 x 650 x 1480 mm

Weight

Approx. 200 kg

Approx 180 kg

Usage

Tribology testing, friction and wear measurement

Friction and Wear Testing

Industrial

Application

Material testing laboratories, academic research, industrial quality control

Material Tribology Testing, Lubricant Analysis, Coating Durability Assessment

Paper & Packaging Compression Strength Testing
