Bench Mounted Two Way Valve - Forge Brass Body, Oxygen & Water Compatible | Leak Tested, Uv & Chemical Resistant Finish
Price:
Get Latest Price
In Stock
Product Specifications
| Valve Body Material | Brass Forging |
| Spindle Material | Brass Rod |
| Knob Material | Nylon |
| O-ring Material | Neoprene |
| Testing Pressure | 15 Bar |
| Max Working Pressure | 10 Bar |
| Color | Blue |
| Features | Leak-proof design, Durable material, Easy installation, Precise control, Wide compatibility, Bench mounted, Two-way valve |
Product Overview
Key Features
Bench Mounted Two Way Valve
Technical Specification
Dry services valves for water, Oxygen and technical gases (99% clean) can be used where a higher degree of cleanliness is required. The design and manufacturing are adapted to Oxygen services meaning that presence of mineral oils and gases are minimized. The fitting surface treated with P.U. METAL COAT. which is highly resistant to most chemicals, UV fading and heat. Innovative Lab fitting are made of FORGE BRASS CASTING. typical media for this range are oxygen, water and all non-burning, non-corrsive and non-toxic 4.0 gases such as N2 and he. Innovative lab fitting are designed for R&D, morden laboratory use. Every fitting is leak tested before leaving our factory.
General Standard
The laboratory fitting we produce are manufactured according to the following specific standard
DIN 12920
Color code for fluids on operating devices of laboratory taps.
DIN 12898
Laboratory taps: outlet nozzles.
DIN 12919
laboratory taps, connecting sleeves: tap columns, heights and flang dimensions.
DIN 3537
Gas valves (LESS THAN OR EQUAL) PN 4 Requirments and test for approval of laboratory valves.
Material with Service Contact
Technical Specification
Dry services valves for water, Oxygen and technical gases (99% clean) can be used where a higher degree of cleanliness is required. The design and manufacturing are adapted to Oxygen services meaning that presence of mineral oils and gases are minimized. The fitting surface treated with P.U. METAL COAT. which is highly resistant to most chemicals, UV fading and heat. Innovative Lab fitting are made of FORGE BRASS CASTING. typical media for this range are oxygen, water and all non-burning, non-corrsive and non-toxic 4.0 gases such as N2 and he. Innovative lab fitting are designed for R&D, morden laboratory use. Every fitting is leak tested before leaving our factory.
General Standard
The laboratory fitting we produce are manufactured according to the following specific standard
DIN 12920
Color code for fluids on operating devices of laboratory taps.
DIN 12898
Laboratory taps: outlet nozzles.
DIN 12919
laboratory taps, connecting sleeves: tap columns, heights and flang dimensions.
DIN 3537
Gas valves (LESS THAN OR EQUAL) PN 4 Requirments and test for approval of laboratory valves.
Material with Service Contact
- MOC of valve body: Brass Forging
- MOC of Spindle: Brass Rod
- Knob: Nylon
- Spindle Oring: Neoprene
- Suitable for Services like water, Gas, & Vacuum
- Testing pressure: 15 Bar / 220 PSI.
- Maximum working pressure: 10 Bar / 147 PSI
Company Details
S. V. INDUSTRIES, Established in 1990 at Ahmedabad in Gujarat, is a leading Exporter,Manufacturer,Supplier of Laboratory Glassware & Equipment in India. S. V. INDUSTRIES is one of Trade India's verified and trusted sellers of listed products. With extensive experience in supplying and trading Bench Mounted Two Way Valve, S. V. INDUSTRIES has made a reputed name for itself in the market with high-quality Bench Mounted Four Way Valve, Bench Mounted Hot Mixture Valve, Bench Mounted Hot Mixture Valve , etc.
Focusing on a customer-centric approach, S. V. INDUSTRIES has a pan-India presence and caters to a huge consumer base throughout the country. Buy Laboratory Glassware & Equipment in bulk from S. V. INDUSTRIES at Trade India quality-assured products.
Focusing on a customer-centric approach, S. V. INDUSTRIES has a pan-India presence and caters to a huge consumer base throughout the country. Buy Laboratory Glassware & Equipment in bulk from S. V. INDUSTRIES at Trade India quality-assured products.
Business Type
Exporter, Manufacturer, Supplier
Employee Count
35
Establishment
1990
Related Products

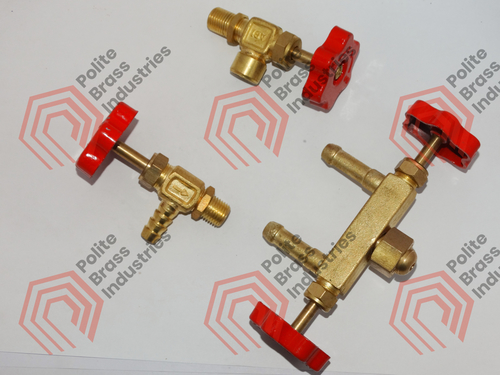

Golden Brass S Valve Two Way Valve
