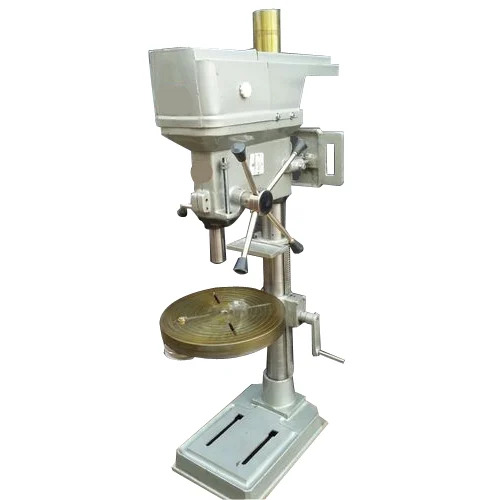

20kb Bench Drilling Machine - 20mm Steel Capacity, 270 X 270 Table Size, Special Green & Orange Finish, 8 Spindle Speeds, 1 Hp Single Phase Motor, Full Safety Cover
Price: 35990.00 INR / Unit
(30500.00 INR + 18% GST)
Get Latest Price
MRP:
35990.00 INR / Unit
Weight :
101.00 Kilogram
1 Pack Contains :
1
Minimum Pack Size :
1
In Stock
Product Specifications
| Condition | New |
| Color | Special Green & Orange |
| Table Size | 270 x 270 |
| Dimension (L*W*H) | 32 Inch (in) |
| Spindle Speed | 8 |
| Product Type | Bench Drilling Machine 20mm 20KB(1phase) KR PANCHAL |
| Material | ANY RAW MATERIAL |
| Computerized | No |
| Automatic Grade | Manual |
| CNC Or Not | Normal |
| Control System | S.G IRON GEARED TYPE, FULL SAFETY COVER (ALUMN.) |
| Voltage | 220 Volt (v) |
| Power | 1.0HP SINGLE PHASE Horsepower (HP) |
| Weight (kg) | 101 KG |
| Capacity | Max. 20mm Cap. |
| Supply Ability | 25 Per Month |
| Delivery Time | 1 Days |
| Packaging Details | Plastic Bag with Scratch Rollas Per Customer Required Wooden Case PackingShipping Cost Will Depend on Location & Volume |
| Main Export Market(s) | Australia, Central America, North America, Eastern Europe, Western Europe, Africa, Middle East, South America, Asia |
| Main Domestic Market | All India |
| Certifications | ISO 9001 : 2015 CERTIFIED COMPANY |
| Product Unit | 1 Unit/Units |
| Pkg Box Breadth | 18.00 in |
| Currency | INR |
| Packsize | 1 |
| Pkg Box Length | 32.00 in |
| Shipping Rate | 550.00 |
| Brand Name | KR Panchal Bench Drilling Machine 20mm 20KB(1phase) |
| Stock Quantity | 50 |
| Color | Special Green & Orange |
| Unit Type | Unit/Units |
| Price | 30500.00 INR (Approx.) |
| MRP | 35990.00 INR |
| Mop | 1 |
| Moq | 1 |
| Price Type | fixed |
| Shipping Type | flat_rate |
| Pkg Box Height | 40.00 in |
| Weight | 101.00 Kilogram |
| Returnable | No |
| GSTIN | 18% |
| Minimum Ordered Packs | 1 |
| Minimum Order Quantity | 1 |
Product Overview
Key Features
MODEL NO. : 20KB (3'FT)
DRILLING CAPACITY IN STEEL : 20MM
DRILLING CAPACITY IN C.I : 22MM
TAPPING CAP. IN STEEL : 14MM
NO. OF SPINDLE SPEEDS : 8
RANGE OF SPEEDS (RPM) : 86 - 3360
SPINDLE TAPER : MT 2
DIST SPINDLE CENTER TO COLUMN : 200MM
SPINDLE TRAVEL : 130MM
SIZE OF SQUARE TABLE : 270 X 270
MAX. DIST. BETWEEN SPINDLE NOSE TO WORKING TABLE : 405
MAX.DISTANCE BETWEEN SPINDLE NOSE TO BASE PLATE : 635
COLUMN DIAMETER : 73.80MM
SIZE OF BASE PLATE : 470 X 294
NET WEIGHT OF MACHINE : 99 K.G
OVERALL DIMENSION OF MACHINE : 800 X 450 X 1000
ELECTRIC MOTOR : 1 HP / 1PHASE / 1440 RPM / "CROMPTON" MAKE
V-BELT SIZE : A -43
ACCESSORIES DETAILS :-
1. ELECTRIC MOTOR 1.0HP SINGLE PHASE "CROMPTON"BRAND
2. DRILL CHUCK WITH KEY 1/2"
3. DRILL ARBOUR MT2 X 1/2"
4. MOTOR PULLEY
5. DRILL DRIFT KEY
6. R/F SWITCH
7. V-BELT
