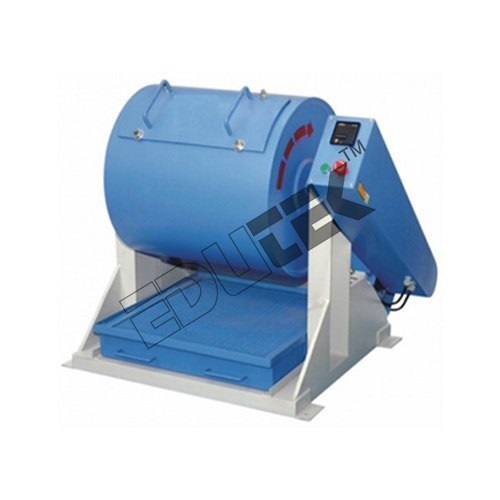

Ball Mill Apparatus - Application: Mechanical Engineering Lab Equipment

Specification:
BALL MILL APPARATUS
Features:
Highly efficiently
Rust proof
Abrasion resistant
Experimentation:
To Study Effect of Rpm on the Power Consumption of a Ball Mill
To Determine the Efficiency of a Ball Mill for Grinding a Material of Known WI
Utility Required:
Raw Material for Feed.
Set of Sieves with Sieve Shaker for Analysis
Steel Balls
Technical Details:
Revolution Counter: Mechanical Type
Product Receiver: Material Stainless Steel of Suitable Size
Control Panel Comprises Of Energy Measurement: Electronic Energy Meter
Mcb: For Overload Protection
Standard Make On/Off Switch, Mains Indicator Etc.
Instruction Manual: An English Instruction Manual Will Be Provided Along
With The Apparatus
The Set-Up Is Fitted With Required Guards
The Whole Set-Up Is Well Designed and Arranged In a Good Quality Painted Structure
Product Specification
Usage/Application: laboratory equipment
Power Source: Electric
Voltage: 220V AC
Motor Power: 1 HP
Power: 1 kW
Material: mild steel
Phase: Single Phase
Ball Mill Diameter: 275 mm
Ball Mill Length: 350 mm
Ball Mill Material: ms
Ball Mill Thickness: 5 mm
Feed Size: 6 mm (Approx.)
Floor Area: 1.5 x 1 m
Product Size: 200 Mesh
