Automatic Edible Oil Packing Machine - Food Grade Stainless Steel, 200ml To 5l Filling Range | Compact, Automatic Operation With Fast Changeover And Precision Sealing

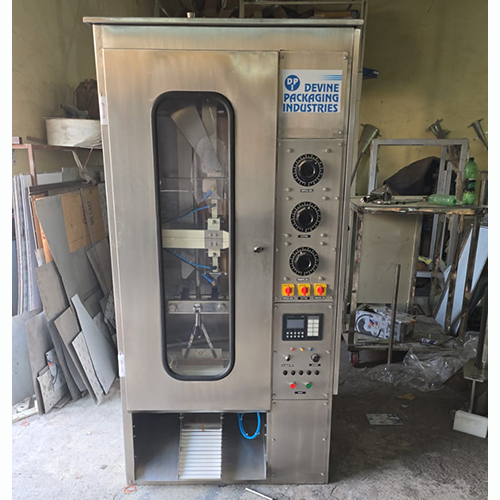

Automatic Edible Oil Packing Machine
Product Specification

Salient Features:

* Automatic, Compact and Robust machines.
* Simplified operation and low maintenance.
* Top quality components and best workmanship.
* All contact parts are made of food grade Stainless steel.
* Fast changeover of pouch size and filling volume.
* Photoelectric mark registration system for precise cutting and sealing of the pouches can be provided.
* Can be custom-made to suit specific requirements.

IMPORTANT SPECIFICATIONS

Automatic Edible Oil Packing Machine for Packing Edible Oil in Pouches made of heat Sealable (LDPE) Film

Model No.: EC-ACOPM-1000ml, EC-AEOPM-5000ml

FEEDING HEAD Pneumatically Liquid pump
FILLING RANGE 200 ml - 1000 ml (EC -AEOPM-1000L model)

1 Litre to 5 Litres (EC -AEOPM-5000L model)
Approx Inaccuracy i? 1%
AVERAGE OUTPUT 2 0 TO 30 Pouches/min (EC -AEOPM-1000L model)
6 to 8 Pouches/min (EC -AEOPM-5000L model)
PACKING MATERIAL Any virgin film (e. g L. D. E. P. film ) of 80 to 120 microns thickness
STYLE OF POUCH FORMING Pillow type (central sealed Pouches)
PACKING FILM WIDTH Generally 330 mm
FILM ROLL CORE DIA ID 70 mm to 76 mm
O D OF FILM ROLL Max 450 mm.
SEALING SYSTEM Comprised of Impluse Ve
