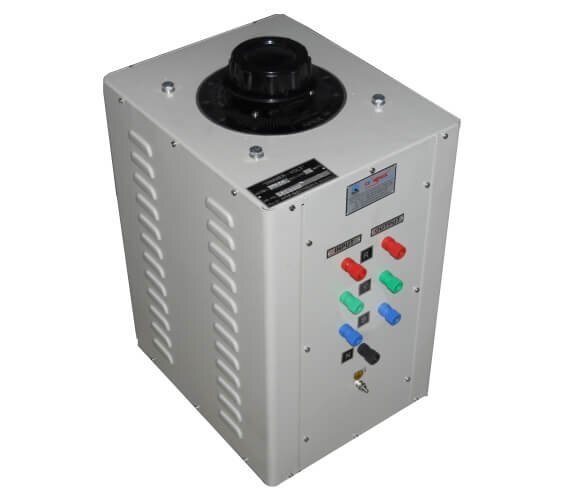

Auto Transformer Variac Closed Three Phase - Application: Three-phase Electrical Systems

An Auto Transformer Variac (Closed Three Phase) is a type of variable autotransformer used for voltage regulation and control in three-phase AC systems. Here's a concise overview:

Key Features- Type: Closed three-phase autotransformer with a variable output voltage
- Operation: Uses a rotating shaft to adjust the output voltage
- Application: Industrial, commercial, and laboratory settings for voltage regulation, testing, and calibration

Common Specifications- Input Voltage: 380V, 400V, 415V, or 440V AC (three-phase)
- Output Voltage: Variable, typically 0-100% of input voltage
- Power Rating: 1 kVA to 1000 kVA or more
- Frequency: 50 Hz or 60 Hz
- Phase: Three-phase
- Connection: Delta or Wyg configuration
- Control: Manual or motorized operation

Performance Specifications- Regulation: 1% to 5% of output voltage
- Efficiency: Up to 98%
- Insulation: Class H or Class F insulation
- Cooling: Natural convection or forced air cooling

Protection and Safety Features- Overload Protection: Built-in overload protection or optional circuit breakers
- Short-Circuit Protection: Built-in short-circuit protection or optional fuses
- Overtemperature Protection: Thermal overload protection or optional temperature sensors

Example Specifications- Model: 3-phase Variac Autotransformer
- Input Voltage: 400V AC (three-phase)
- Output Voltage: 0-400V AC (variable)
- Power Rating: 10 kVA
- Frequency: 50 Hz
- Connection: Delta configuration
- Control: Manual operation
- Dimensions: 300mm x 400mm x 600mm (WxDxH)

Considerations- Voltage Regulation: Ensure the Variac can handle the required voltage range and regulation.
- Power Rating: Choose a Variac with a suitable power rating for the application.
- Cooling: Consider the cooling requirements for the Variac, especially for high-power applications.
- Protection: Ensure the Variac has adequate protection features, such as overload and short-circuit protection.
