9.7 Inch Ips Module Screen - 1024x768 Resolution, 30 Pin Capacitive Touch Panel With Lvds Interface, Operates -20 To +70c

9.7 Inch Ips Module Screen - 1024x768 Resolution, 30 Pin Capacitive Touch Panel With Lvds Interface, Operates -20 To +70c

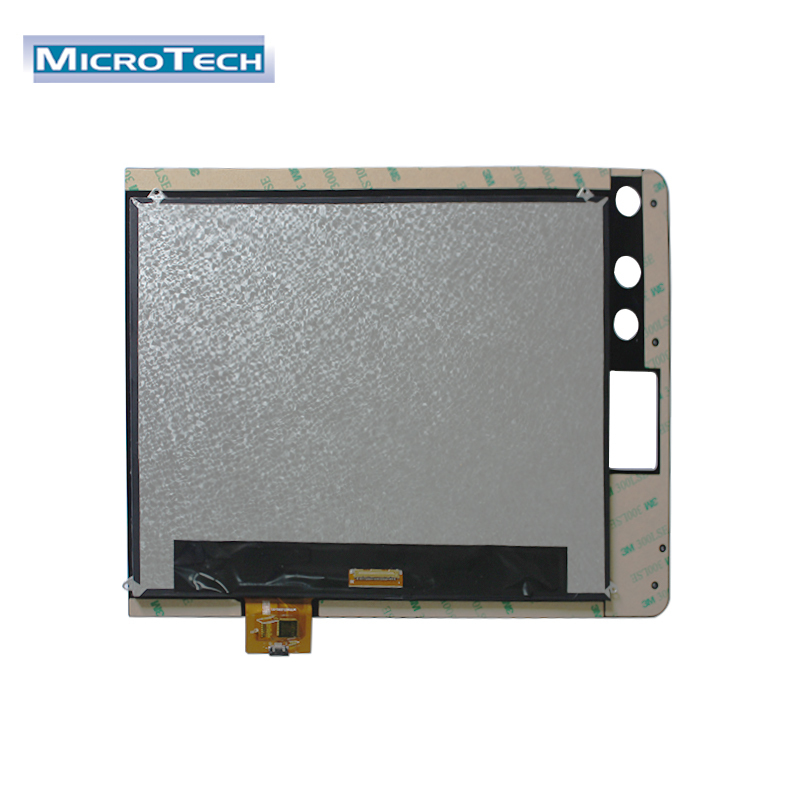

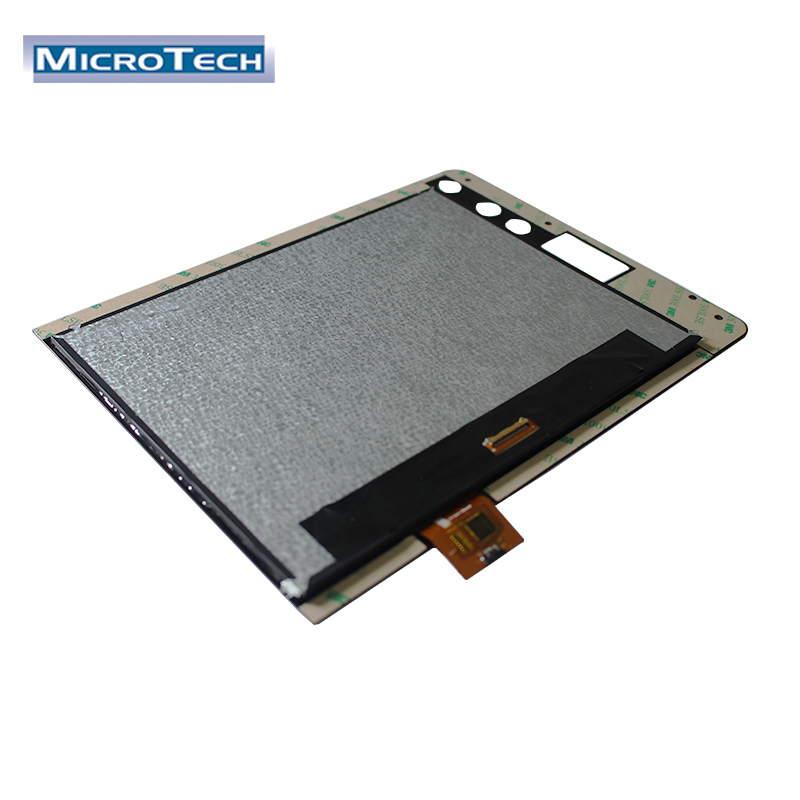

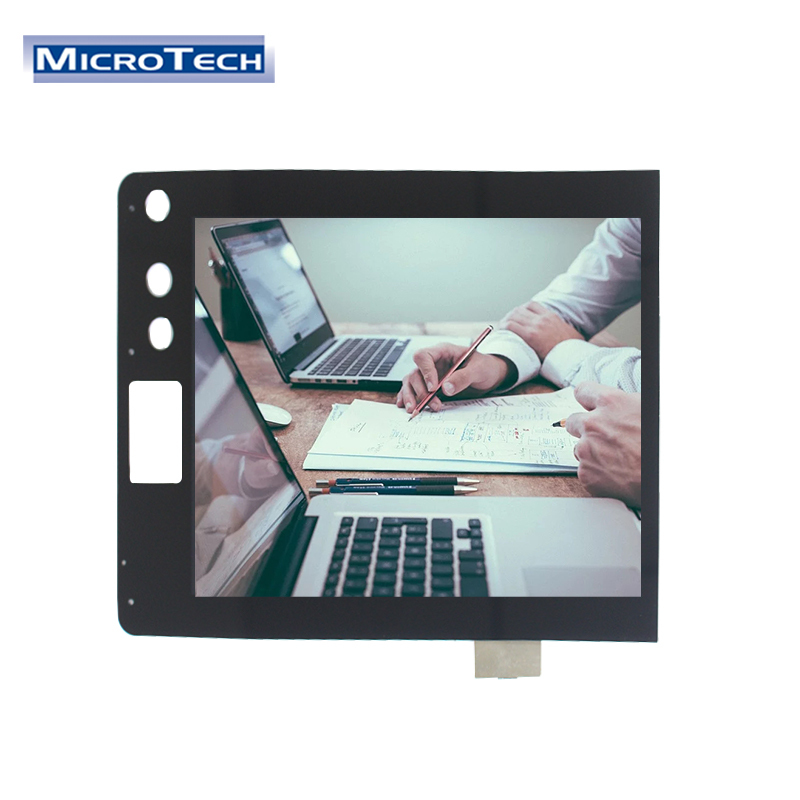

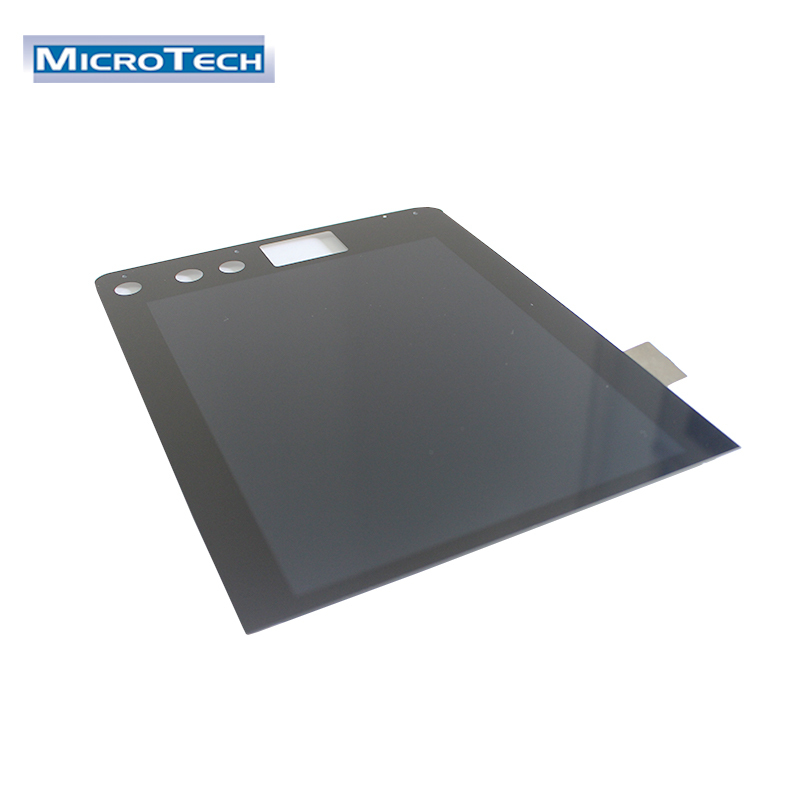

Name: 9.7 inch IPS Module Screen TFT LCD Touch Panel
Price: 33.9 USD
Availability: InStock

Price: 33.9 USD / Piece

Get Latest Price

Minimum Order Quantity :

2 Piece

Brand Name :

Microtech

In Stock

Product Specifications

Resolution	1024 x 768 pixels
Interface	LVDS, RGB, or HDMI (customizable)
Operating Temperature	-20AdegC to +70AdegC
Components	TFT LCD Display, Capacitive Touch Panel, Driver IC
Power Supply	External DC Power
Output	Visual Output via LCD Display
Usage	Tablet, Embedded Systems, Education Devices, Industrial Applications
Power Source	DC Powered
Features	Wide Viewing Angle, High Brightness, Touch Functionality, Robust Construction
Display Type	Other, IPS (In-Plane Switching) TFT LCD
IP Rating	IP52
Response Time	5 ms (typical)
Input	Touch / HDMI / LVDS / RGB Interface
Sensors Specification	Capacitive Touch Sensor (10-point)
Processor Speed	N/A (Display Module)
Product Type	IPS TFT LCD Touch Panel Module
Application	Medical Devices, POS Terminals, Portable Monitors, Industrial Controls
Rated Voltage	3.3V DC
Supply Voltage	3.3V~5V DC
Size	9.7 Inch
Dimension (LWH)	235 mm x 164 mm x 4.5 mm
Function	Display visual content with touch input capability
Color	Full Color (16.7M Colors)
Weight	Approx. 220 grams
Thickness	Approx. 4.5 mm
Capacity	Capacitive Touch (10-point)
Current Rating	350 mA (typical)
Frequency	60 Hz
