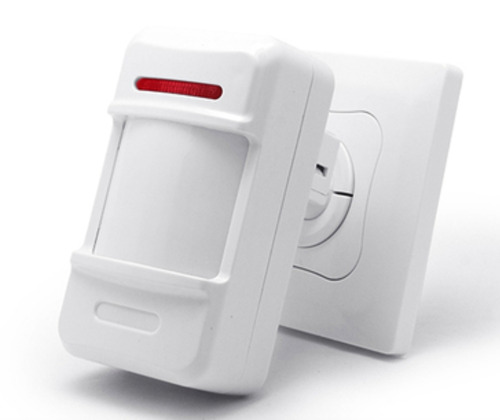

Z-wave Motion Sensor (Pir)

Our firm is supplying Z-Wave Motion Sensor (PIR) in Shenzhen, Guangdong, China.

PIR is a passive infrared detector or physical sensor, the sensor doesna t emit any energy but only passively receive and detect infrared radiation from outside. Under room temperature, all items have radiation. Human beings are warm-blooded animal with stable infrared radiation, are most easily to be detected. Thata s why we also call it body sensor. PIR send messages via Z-wave network to the Z-wave main controller. In the Z-wave network communications, PIR can be connected to any Z-wave main controller, Different countries or areas, the radio frequency is different of the Z-wave network. In the communication between the PIR and Z-wave main controller, PIR can only send messages, not be able to receive messages. When the PIR is triggered, PIR will send message to the Z-wave main controller, and associate devices to work through the Z-wave main controller. The PIR is battery powered, is small and can be installed easily.


Parameters

1. Model: COL-PR01Z, COL-PR02Z
2. Compatible with 300 series and 500 series
3. Function: motion, light sensitivity, temperature(optional) detection
4. Range: up to 50m outdoor, 30m indoor
5. Power supply: CR123A x 1
6. Standby current: 16uA
7. Battery life: 1 years
8. Radio Protocol: Z-wave
9. Radio Frequency: 868.4MHz EU; 908.4MHz US; 921.4MHz ANZ; 869.2MHz RU
10. Detection range: 7 meters
11. Viewing angle: 90 degree
