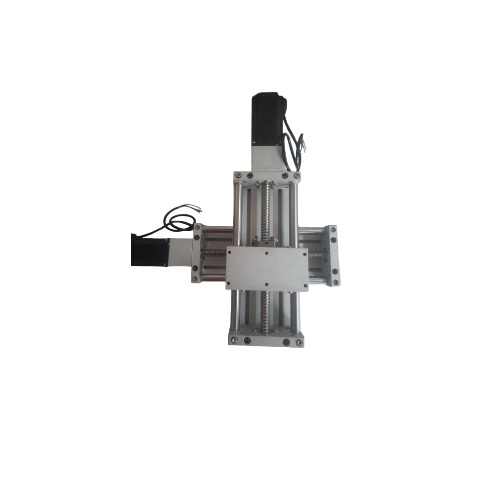

Xy Linear Slide By Aum Automation

An XY Ballscrew Motorized Axis is a motion system commonly used in CNC machines, 3D printers, and robotics, where precise control over movement in two perpendicular directions (X and Y axes) is required. It combines ballscrews with motors to achieve accurate, controlled, and efficient linear motion.

Key Components:

1.

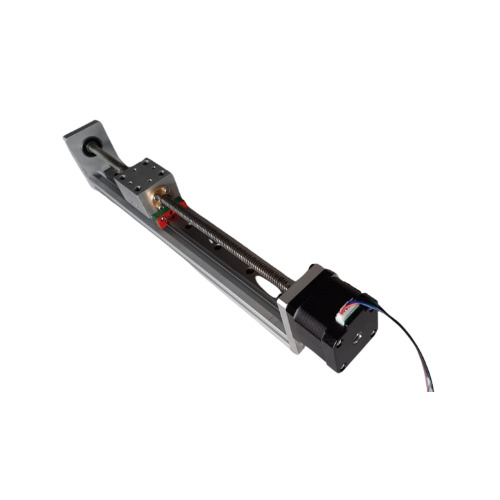

   Ballscrews: These are screws with a helical thread that, combined with ball bearings, convert rotational motion from the motor into precise linear motion. The ball bearings reduce friction and allow for smooth and efficient movement.





2.


   Motors: Typically stepper motors or servo motors drive the ballscrews. The motors are controlled by an electronic system, enabling precise adjustments to the position of the axis.





3.

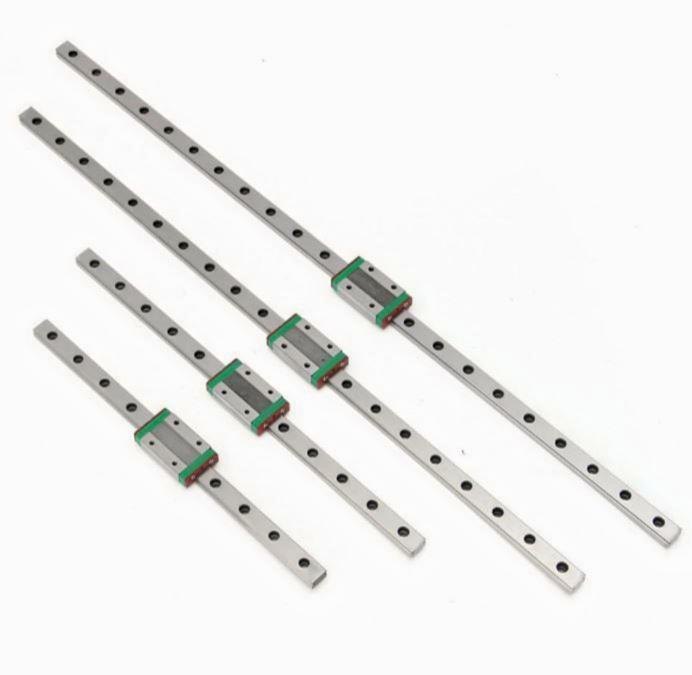

   Carriages/Slides: The parts that carry the load or tool, moving along the ballscrew's path. They are typically supported by linear guideways to ensure smooth movement.
