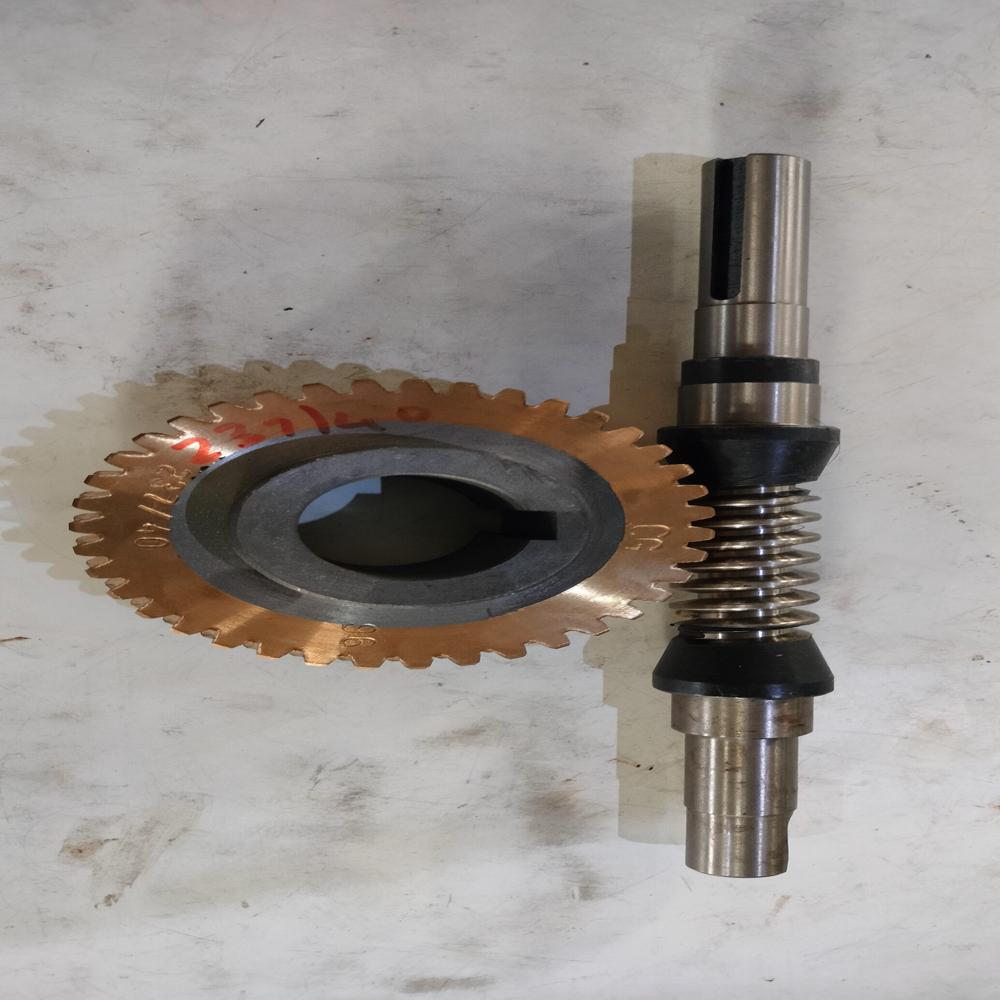

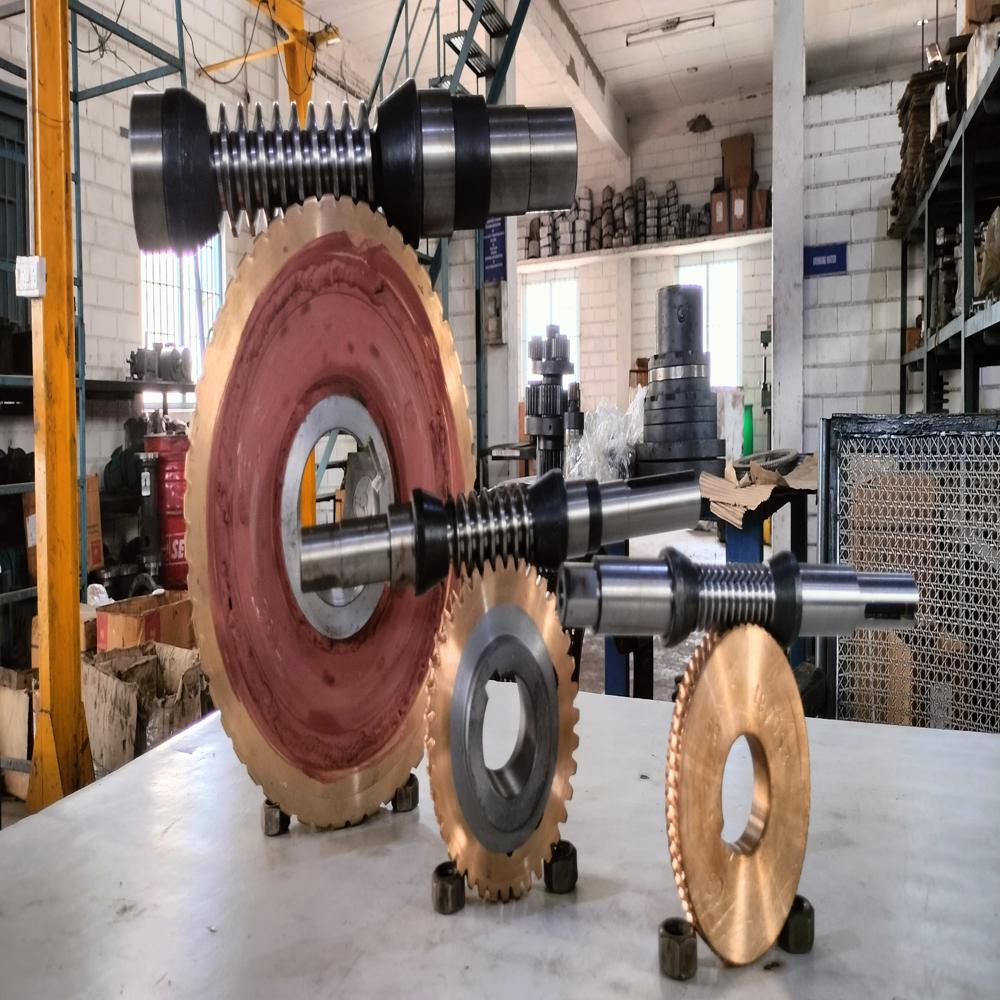

Worm & Wheel Sets - Usage: Industrial

Price:

Get Latest Price

Minimum Order Quantity :

Brand Name :

Covaai

In Stock

Product Specifications

Surface Treatment	Phosphated / Painted
Mounting Type	Horizontal / Vertical
Center Distance	25 mm to 200 mm (customizable)
Number of Starts	Single, Double or Multi Start Worm
Module Range	0.5–10 mm
Lubrication	Oil Bath / Grease
Operating Temperature	-10°C to +80°C
Noise Level	Low
Backlash	Minimized, precision adjustable
Life Expectancy	Long service life under proper lubrication
Load Capacity	Heavy Duty
Customization	Available for dimensions and ratios
Usage	Industrial
Product Type	Worm & Wheel Sets
Gear Type	Worm Gears
Material	Other, Cast Iron
Processing Type	Other, Precision Machined
Gear Tooth Profile	Other, Enveloped / Crowned
Gearing Arrangement	Other, Worm and Wheel
Direction	Reversible
Output Torque	High (application-specific, typically up to several kNm)
Rated Power	Up to 15 kW (dependent on size and application)
Input Speed	1440 RPM (standard), customizable
Output Speed	As per ratio; low RPM output (typically 10aEUR"200 RPM)
Voltage	Not applicable (Mechanical Gear Set)
Efficiency	40%aEUR"85% (depending on ratio and lubrication)
Payment Terms	Cash Advance (CA), Cash in Advance (CID), Cheque
Supply Ability	30 Per Day
Delivery Time	1 Week
Packaging Details	Wooden Packing
Main Export Market(s)	Western Europe, Middle East, Central America, Eastern Europe, Africa, South America, Australia, Asia, North America
Main Domestic Market	South India, Andhra Pradesh, Goa, Karnataka, Kerala, Pondicherry, Tamil Nadu, Telangana, Odisha
Certifications	ISO
