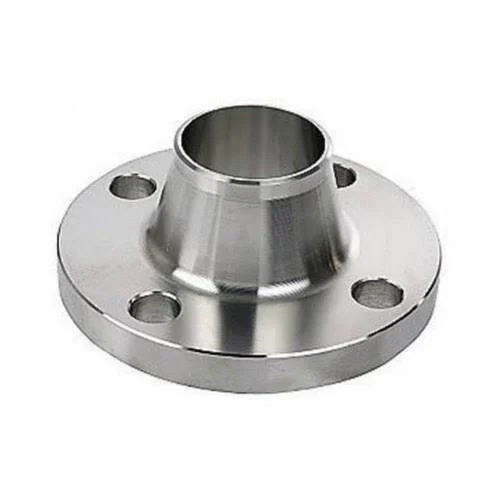

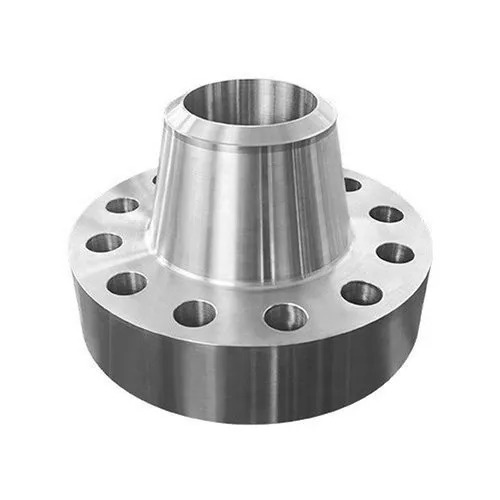

Weld Neck Flange

Name: Weld Neck Flange
Price: 120 INR
Availability: InStock

Price: 120.00 INR / Piece

(120.00 INR + 0% GST)

Get Latest Price

MRP:

120.00 INR / Number

Weight :

1.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Product Specifications

Material	Carbon steel
Size Range	1/2" - 24"
Pressure Rating	150 - 2500 psi
Face Type	Raised Face
Drilling	Standard
Finish	Polished
Usage	High-pressure piping systems, refinery applications, power generation
Standard	ASME B16.5
Features	High strength, Reliable weld, Reduced turbulence, Stress resistant, Durable design, Precise fit, Long lifespan
Feature	Key Features of Weld Neck Flanges:Tapered Hub: The distinctive, long tapered neck gradually transitions the thickness from the pipe to the flange, reducing stress concentration at the joint.Butt-Weld Connection: Designed to be butt-welded to pipes, providing a stronger, more reliable, and leak-proof joint compared to fillet welds.Matched Bore: The internal diameter (ID) of the flange matches the pipe ID, ensuring a smooth, unobstructed flow and reducing erosion/turbulence.High Pressure/Temperature Resistance: Suitable for severe service conditions (high pressure/temperature), meeting, for example, ASME B16.5 standards.Durability: Often forged for maximum strength, ensuring long service life in harsh environments.Versatile Faces: Available in Raised Face (RF), Flat Face (FF), or Ring Type Joint (RTJ) configurations.Sizes & Materials: Available in sizes ranging from inch to inches (and larger), and materials including carbon steel, stainless steel (e.g., F304/L, F316/L), and alloy steel.
Material Grade	As Per BS Table 10
Surface Finish	Finish
Capacity	25 Pcs/hr
Working Presssure	Various
End Type	Flanges
Purity	100%
Pressure Ratings	Various Ratings
Corrosion Resistant	100
Connection Type	Joint
Diameter	25 Meter (m)
Application	Key Uses and ApplicationsHigh-Pressure/Temperature Systems: Ideal for steam lines, refineries, and petrochemical plants where extreme conditions exist.Critical Service: Often used where leakage must be avoided due to dangerous or flammable,corrosive, or toxic contents.Structural Integrity: The long, tapered neck transfers stress from the flange to the pipe, reducing stress at the base and preventing fatigue.Minimal Turbulence: The flange bore matches the pipe's internal diameter, enhancing flow and reducing erosion.Cyclic Services: Used in systems subjected to significant, frequent temperature changes or vibrations.
Color	Black
Grade	A105
Port Size	25
Thread Type	As per Require
Shape	Round
Pipe Type	ROUND
Dimension (LWH)	25mm Millimeter (mm)
Product Type	Pipe Flanges
Surface	Painted, Galvanized, Other, Black
Connection	Male
Technics	ERW
Pressure	Various PSI
Size	25
Delivery Time	1 Hours
Sample Available	No
Main Domestic Market	All India
Currency	INR
Packsize	1
Product Unit	1 Number
MRP	120.00 INR
Pkg Box Breadth	150.00 cm
Shipping Type	actual
Stock Quantity	5
Color	Black
Weight	1.00 Kilogram
Moq	1
Returnable	No
Price	120.00 INR (Approx.)
Mop	1
Unit Type	Number
Pkg Box Height	300.00 cm
Price Type	fixed
Brand Name	WNRF FLANGE
Pkg Box Length	250.00 cm
Minimum Order Quantity	1
Minimum Ordered Packs	1
GSTIN	0%
