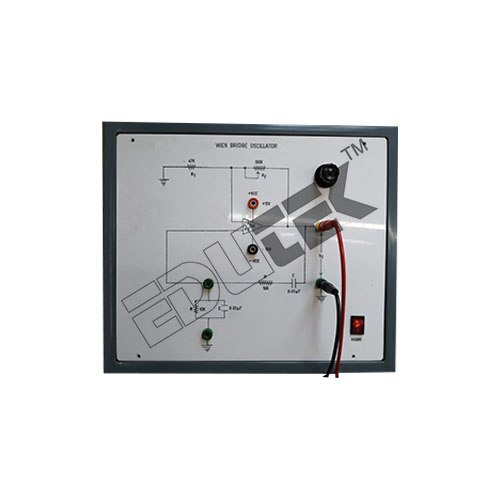

Wein Bridge Oscillator - Application: Engineering Electronics Instruments
Price: 1200.0 INR / Piece
Get Latest Price
Minimum Order Quantity :
1 Piece
Brand Name :
Edutek
In Stock
Product Specifications
| Processor Speed | Not applicable for analog circuits |
| Output | Sine wave, 1 Hz to 100 kHz (typical range) |
| Features | Low distortion output, continuously variable frequency, built-in components, fuse protection |
| Power Supply | Mains, 230V AC 10%, 50 Hz |
| Resolution | Analog adjustment, fine resolution by precision potentiometer |
| Power Source | Mains AC |
| Response Time | Instantaneous (analog device) |
| IP Rating | Not rated (laboratory indoor use only) |
| Input | Mains power supply only |
| Components | Resistors, capacitors, OPAMP, display panel, output terminals |
| Operating Temperature | 0C to 50C |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Display Type | Other, Panel with calibrated positions, analog scale output |
| Interface | Banana sockets for output connections |
| Product Type | WEIN BRIDGE OSCILLATOR |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 230V AC |
| Supply Voltage | 230V AC |
| Size | 350mm x 225mm x 125mm |
| Dimension (L*W*H) | 350 mm x 225 mm x 125 mm |
| Function | Generates sine wave oscillations using a Wien bridge network |
| Color | White with black panel markings |
| Weight | Approx. 2 kg |
| Current Rating | Less than 1A |
| Capacity | Single channel output |
| Thickness | Approx. 5 cm panel thickness |
| Frequency | Adjustable, 1 Hz to 100 kHz |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
Product Overview
Key Features
WEIN BRIDGE OSCILLATOR
To construct a Wein-Bridge Oscillator and determine the resistor ratio to develop the correct degenerative feedback.
To insert a simple automatic gain control (AGC) and observe the effect, it has on oscillator operation.
To vary these values of resistance and capacitance in the leading network and to observe the resultant frequency changes.
Company Details
Manufacturer and Exporter of all type engineering lab equipment, civil engineering lab equipment, science lab equipment, soil testing lab equipment, concrete Testing Lab Equipment, Vocational Training Equipment, Teaching lab equipment, Pharmacy Lab Equipment, Mechanical Lab for engineering college, fluid mechanic lab for engineering students, etc
Business Type
Exporter, Manufacturer, Supplier
Employee Count
25
Establishment
1973
Working Days
Monday To Saturday
GST NO
06AEWPJ6896D1ZU
Certification
AN ISO 9001:2008
