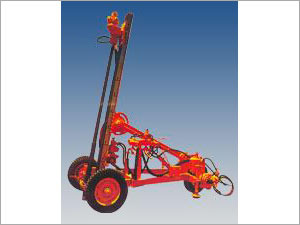

Wagon Drill - Versatile Mobility With 90-120mm Hole Diameter, Up To 40 Meters Depth | Durable Finish, Longer Service Life, Easy Operation

Price:

Get Latest Price

In Stock

Product Specifications

Color	Yellow
Motor	Three 6 Bhp
Drill Pipes	2/3 Meters
Hole Diameter	90-115 Mm
Depth	40 Meters
Mast Swivel	25 Degrees
Features	Durable Design, Easy Operation, High Performance, Long Lifespan, Precise Drilling, Powerful Motors, Mobile Design, Stable Drilling

Product Overview

Key Features

The goodwill, our enterprise has been enjoying in this domain is due to our offered technically-advanced Wagon Drill. This drill is ideal to borehole for quarry, mining and construction industries in an efficient manner. The provided drill is manufactured at our advanced production unit with the aid of pioneering techniques using utmost quality components by our diligent professionals. Moreover, this Wagon Drill can be purchased from us in different technical specifications at pocket friendly costs.

Features:

Durable finish
Longer service life
Optimum performance
Easy to operate

Wagon Drill

We offer an extensive range of rubber tyre wheel mounted wagon drilling rigs for you to choose from. Our fleet of best performing rigs includes JB 125, JB 130 and JB 150. These rigs are a valuable solution for drilling, blasting and grouting purposes in mines, quarries and construction works.

Equipped with three self propulsion motor units, these down the hole pneumatic drilling rigs give a huge advantage for mobility at work even on difficult ground conditions. The sturdy heavy duty performance comes from powerful rotation and winch units which results in accurate drilling capabilities ensuring more secure whole walls.

Our continues innovative efforts provide the following benefits and features:

Drilling capabilities:

These rigs are easily capable of drilling a wide range of hole diameters from 90 - 115 mm and to a depth of 40 meters
Rigs are capable of handling 2mts and 3mts drill pipes
Mast is swivel-able up to 25 degrees on either side, thus enabling the rig to drill holes from 15 degrees onwards from vertical to horizontal position

Motor units:

Three 6 B.H.P self propulsion 4 cylinder piston type air motor units provide ample power for easy movement of rig from hole to hole even on rough terrains
8 B.H.P heavy duty pneumatically operated rotation unit supplies efficient and faster drilling capability
6 B.H.P winch unit with auto chain feed and rapid withdrawal arrangements improves productivity manifold

Strong compact design:

Built on a strong rugged box base frame for extra strength and stability
Simple compact design helps during drilling in inaccessible areas and also during transportation
Provision for anchoring of mast and locking arrangement between mast and boom ensures extra rigidity during drilling
Set braked wheels with two adjustable front stabilizers hold the rig firmly
Longer components life

Operating and maintenance:

These rigs are single person operated rigs, easy to operate and maintain
Ergonomically placed control panels for drilling and trimming ensure ease of use
Rear wheel can be swiveled at 90 degrees during toe hole drilling to prevent
Leak proof fluid seals to avoid air leakage

Optional:

Water mist system for stabilizing hole walls when drilling in poor rock conditions
Water injection system for dust suppression

To simply say, our wagon drills are the best-in-class rigs delivering great efficiency and at the same time providing maintenance free performance. The perfect choice for working in constrained areas requiring flexibility and precision drilling. Furthermore these rigs can be customized and designed as per site conditions. As manufacturer and supplier of these drilling machines, from our state Rajasthan manufacturing plant, we have gained the trust of customers across the length and breadth of India. This trust bestowed upon us has made us the most favorable exporter across the globe as well.

Drilling Dimensions :( approx. values)

Wagon Drill Rigs
Hole Diameter	90 - 120mm
Drilling Depth	upto 40 mts
Drill Pipe Diameter	60 - 72mm
Drill Pipe Length	2 - 3 mts

Technical Details:

Motor Units	Rotation Unit	Winch Unit	Self Propulsion Unit
Numbers	1	1	3
BHP	8	6	6
RPM	1250	1250	1250
Max. Torque	10,000 lbs	-	-
Pull Down Force	-	0 2200 kgf	-
Pull Up Force	-	0 2200 kgf	-
Air Compressor Free Air Delivery	450 cfm (12.7m3/min)	450 cfm (12.7m3/min)	450 cfm (12.7m3/min)
Air Compressor Working Pressure	150 psi (10.5kg/cm2)	150 psi (10.5kg/cm2)	150 psi (10.5kg/cm2)
