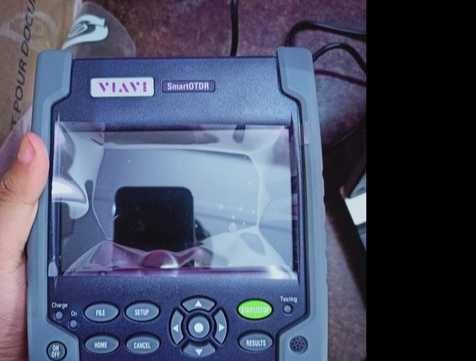

Viavi Smart Optical Time Domain Reflectometer Machine Weight: 2 Kilograms (Kg)

SMARTOTDR 100AS 1550NM-APC

Light, compact, hands-free design includes 5 high-visibility outdoor touch screen. Dynamic Range of 30/28dB (1310/1550nm). Stool Container zones: EDZ (1.35m), ADZ (4m). Integrated CW light source. All-day battery life. Testing of metro & access networks-with tailored OTDR interface & automatic analysis that any technician can understand.
Brand NameVIAVI (formerly JDSU)
Product TitleVIAVI(formerly JDSU) SmartSeries-100A SingleMode OTDR (1310/1550nm, 30/28dB)
Part NumberSmartOTDR 100AS 30dB
OTDR TypeDark Fiber Testing
Application typeLast Mile-Access Links and Metro Links (CATV & Telecom)
Hardware typeNon-Modular (Dedicated OTDR)
Wavelength1310/1550 nm
Dynamic Range30/28 dB
Firmware TypeLinux
Event Dead Zone1.35 meter
Attenuation Dead Zone4 meter
FTTH/PON TestNot Available
Pulse Width5 ns to 20 us
Display Size5 inch
Display TypeOutdoor-Enhanced, 800480 TFT
TouchscreenYes
Operation AccessTouchscreen and Front Panel Buttons
Internal Data Storage10,000 OTDR Traces (typical)
Interfaces2x USB2.0 Ports and 1x Mini-USB2.0 Port
Power SupplyAC/DC Adapter (O/P: 12V DC 25W)
Battery TypeRechargeable Lithium Polymer
Battery BackupUpto 20 hours (typical, from full charge)
Other FeaturesLight Weight & Compact, Built-in PDF report generation Model for Telecom Contractors.
Dimension175 x 138 x 57 mm
Weight0.9 kg
Standard Accessories :
OTDR(1No) SmartOTDR 100AS 30dB
AC/DC Adapter(1No)
Battery Pack(1No) Fixed Internally
Touch Stylus(1No)
Instruction Guide(1No)
User Manual(1No) As Soft Copy in OTDR Base Unit.
Calibration Certificate(1No)
Carrying Case(1No)
