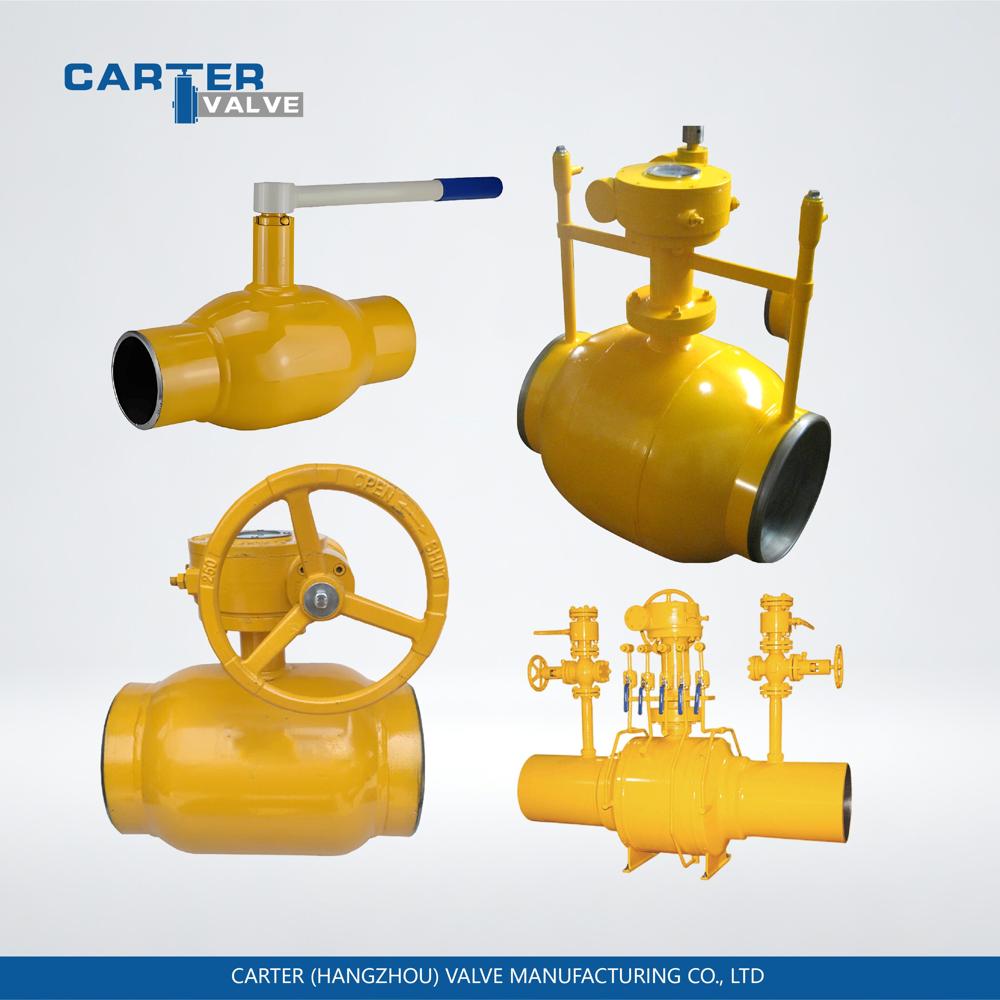

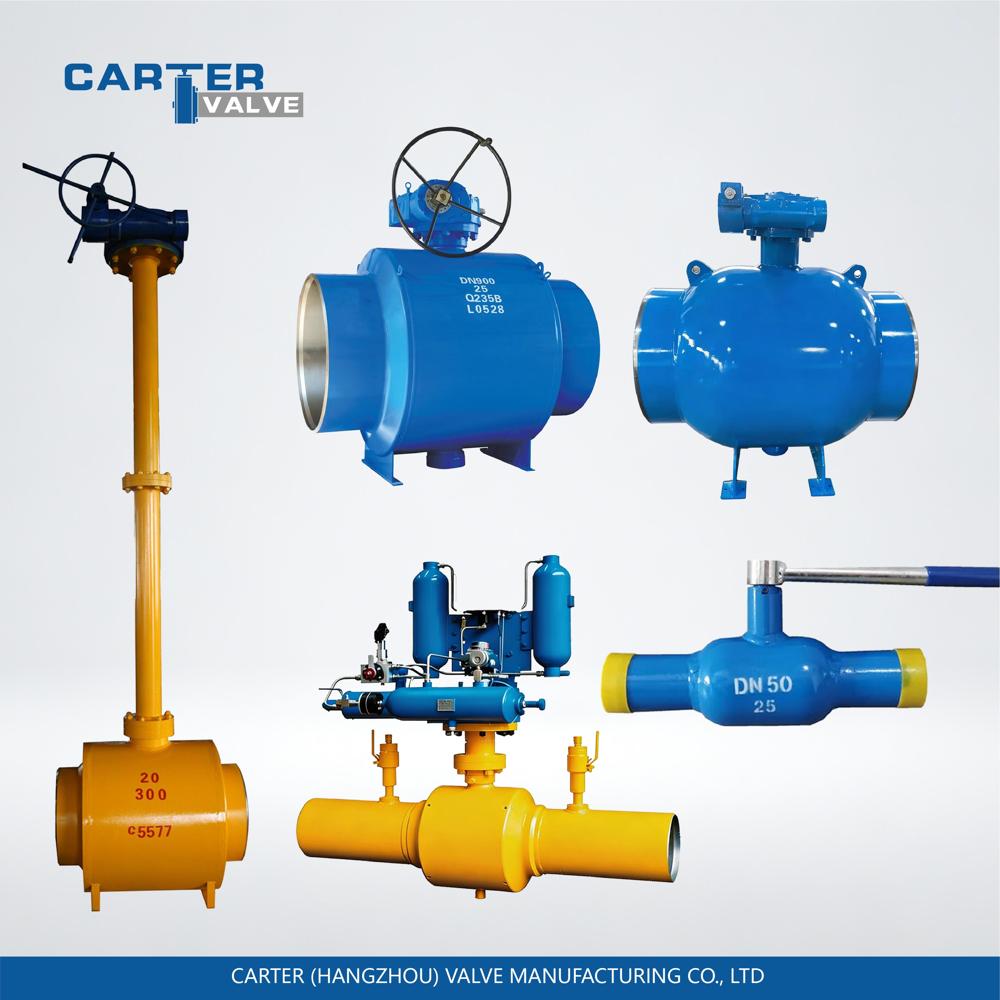

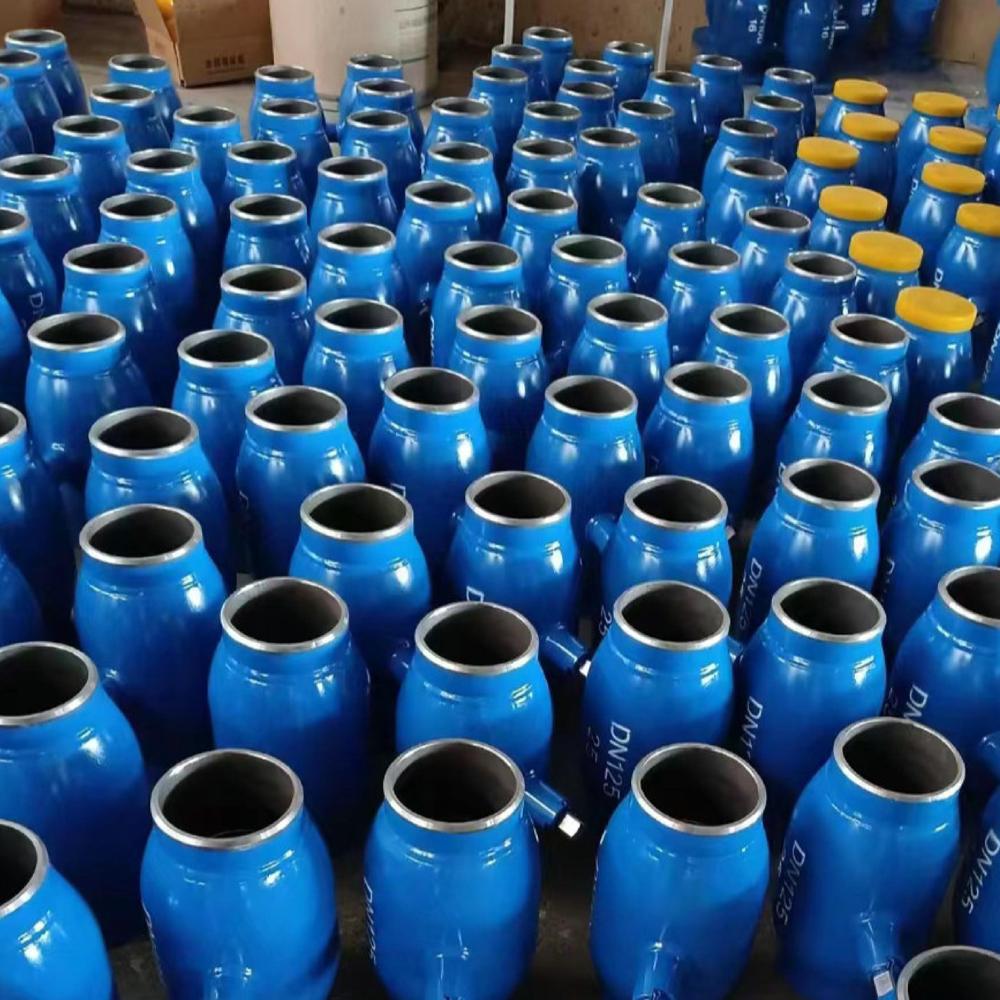

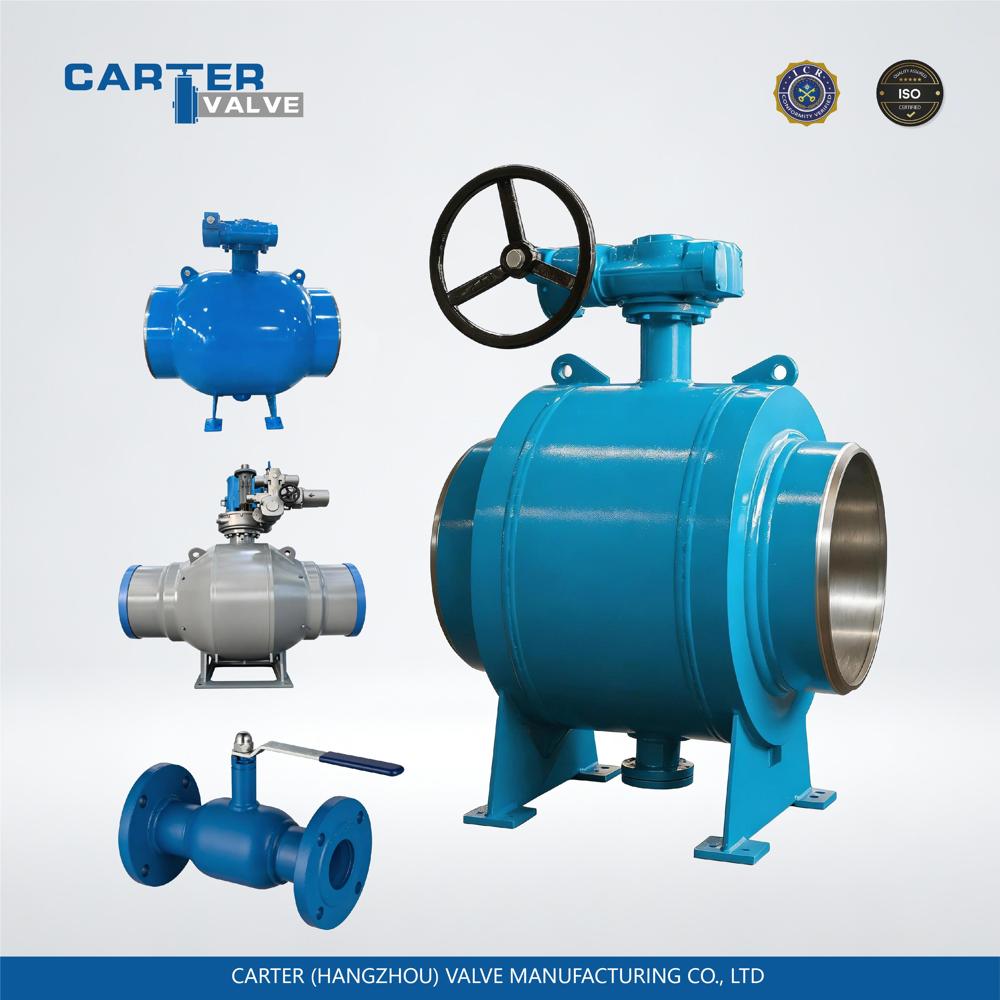

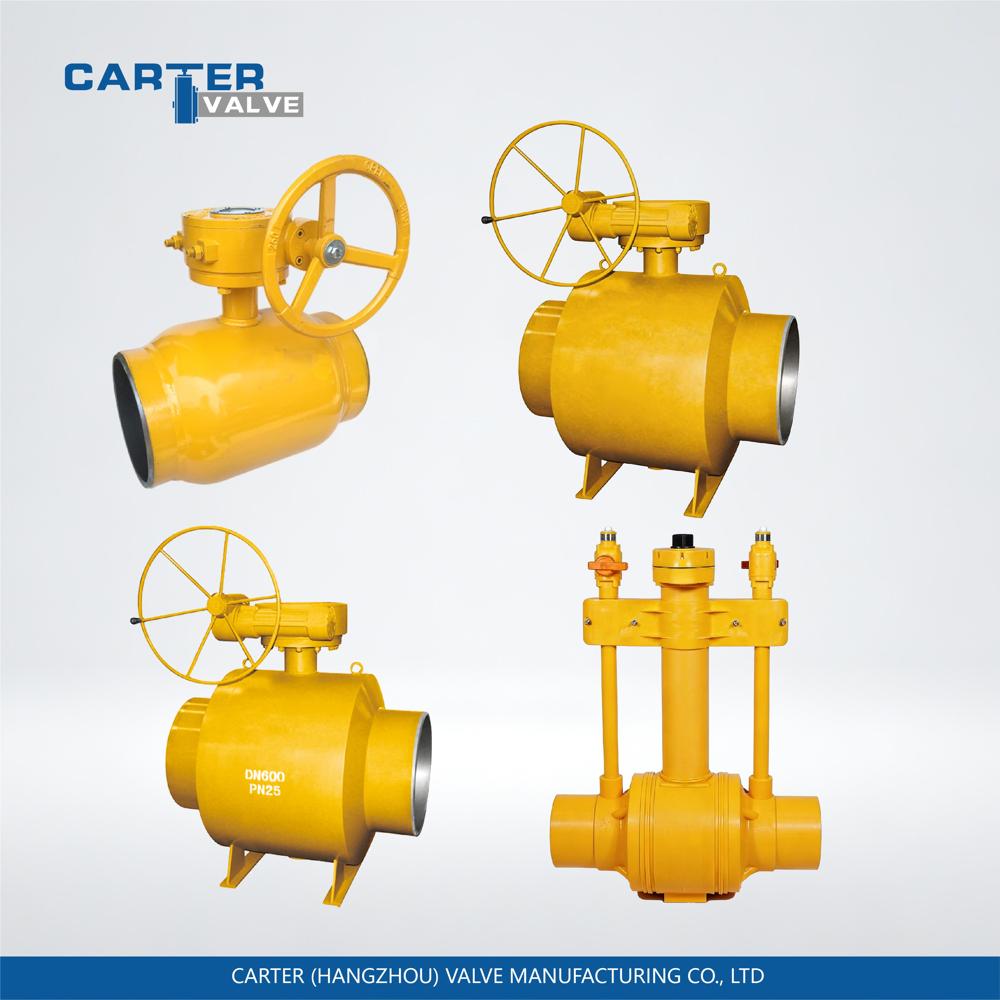

Fully Welded Ball Valve / Welded Body Ball Valve, Carbon Steel, Butt Weld, Gear Operated, Fully Welded Structure, Natural Gas/oil, Api 6d Standard - Application: Long-distance Pipelines

Fully Welded Ball Valve / Welded Body Ball Valve, Carbon Steel, Butt Weld, Gear Operated, Fully Welded Structure, Natural Gas/oil, Api 6d Standard - Application: Long-distance Pipelines

Name: Fully Welded Ball Valve / Welded Body Ball Valve, Carbon Steel, Butt Weld, Gear Operated, Fully Welded Structure, Natural Gas/Oil, API 6D Standard
Price: 1000.0 INR
Availability: InStock

Price: 1000.0 INR / Piece

Get Latest Price

Minimum Order Quantity :

1 Piece

In Stock

Product Specifications

Features	Zero external leakage, high structural strength, corrosion resistant for buried installation, low flow resistance, quick 90 operation, long service life (20-30 years), maintenance-free, anti-static/anti-blowout/fire-safe compliant
Valve Type	Fully welded ball valve
Connection Type	Butt weld, socket weld, flange
Valve Size	DN10~DN1600mm (customizable for large diameter)
Control System	Manual, worm gear, electric, pneumatic (explosion-proof optional), gear drive
Material	Carbon steel (A105/WCB/ST37), stainless steel (CF8/CF8M/316L), alloy steel (LCB/LCC/Cr-Mo steel)
Sealing	Class VI zero leakage; Soft seal (RPTFE/Viton/PTFE); Hard seal (stellite/hard alloy); Fire-safe structure (API 6FA/607)
Usage	Long-distance pipelines, city gas, heating, petrochemical, etc.
Structure	Ball
Application	Long-distance pipelines, city gas, heating, petrochemical, natural gas, water, steam, corrosive media systems
Type	Floating ball / Fixed ball
Size	DN10~DN1600mm (customizable for large diameter)
Suction Type	Single
Media	Base, Water, Oil, Acid, Other, Gas
Product Type	Fully welded ball valve
Weight	Lightweight, 15%-30% lighter than flanged ball valves of the same specification Kilograms (kg)
Port Size	DN10~DN1600mm (customizable for large diameter)
Volute Type	Single
Temperature	Standard soft seal: -29 ~200 ; Low temperature: -60 ~-196 ; High temperature hard seal: up to 600 Celsius (oC)
Shaft Orientation	Horizontal
Disc	Stainless steel ball (SS304/SS316/F316L, hardened optional)
Power Source	Electric
Warranty	1 Year
FOB Port	port of Hong Kong
Payment Terms	Cash in Advance (CID), Telegraphic Transfer (T/T)
Supply Ability	1000 Per Month
Delivery Time	10 Days
Sample Policy	Contact us for information regarding our sample policy
Main Export Market(s)	Asia
Certifications	1.ISO 9001 Quality Management System Certification2.CE Certification3.CCC Certification (China Compulsory Certification)4.UL Certification5.ATEX Certification6.IECEx Certification7.ISO 14001 Environmental Management System Certification8.FDA Certification (for Food and Pharmaceutical Grade Pumps)
