Vernier Hook & Point Gauge: MTFM-41

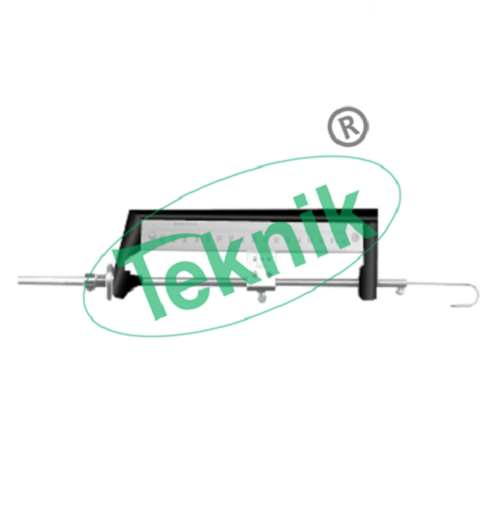

A mounting frame is clamped to a suitable support structure and a gauging rod is free to slide up and down over the water surface. A stainless steel hook or point is attached to the bottom end of the rod and is used to locate the water surface. Gauging is carried out by means of a primary scale attached to the mounting frame and a vernier scale attached to the rod.

The scales are in edge contact. The rod is held in a screwed collar for fine adjustment and can be released for large, rapid changes of position. Zero can be reset by a locking screw positioned on the vernier scale.

DEMONSTRATION CAPABILITIES
Location of air-water surface boundaries with high resolution
Measurement of slowly changing water levels in flumes and hydraulic models
Measurement of mechanical deformation
TECHNICAL SPECIFICATIONS
A rugged low cost gauge for measurement of water surface position to 0.20mm
Mounting frame in enameled cast aluminum
Gauging rod and adjusting mechanism in bright plated brass
Supplied complete with stainless steel hook and point
Ranges: 1: 150 mm
2: 300 mm
3: 450 mm
Resolution: 0.10 mm
Typical accuracy: 0.20 mm
Repeatability: 0.10 mm
** Note: The content of the product and specification are subject to change without prior notice for continuous improvement. Images shown are for representation purpose only. MICROTEKNIK keeps the right to modify the content in the product without prior notice.
