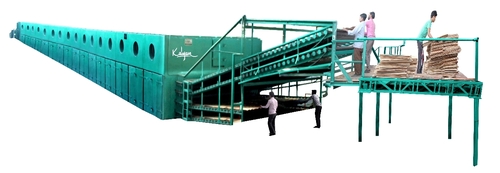

Semi-automatic Venere Dryer

. ROLLER JET DRYER : 8 SECTION 4 DECK,4OD x15-2 LONG ROLLER:1No
LATEST & ECONOMICAL TYPE, MAINTENANCE FREE & ENERGY SAVING

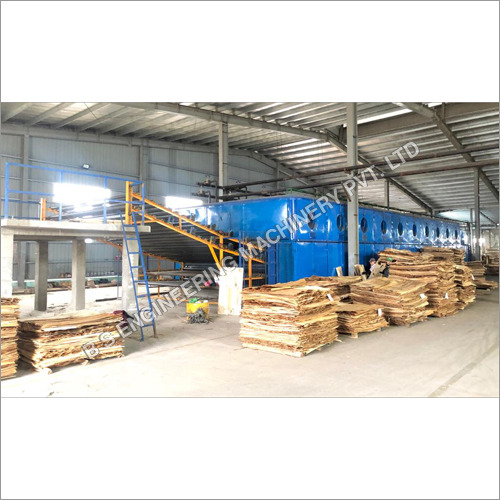

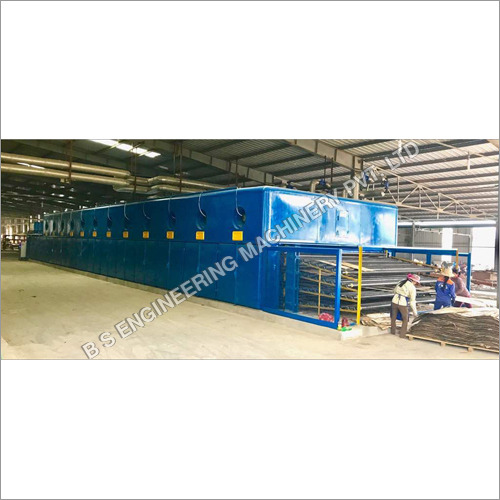

8 SECTION 4 DECK ROLLER VENEER JET DRYER OF STEAM / THERMIC FLUID HEATING

Specification: One No. Heavy duty, Latest & Special type 8 Section 4 Deck Energy Saving Roller Veneer Jet Dryer machine will have jet ventilated Roller Conveyor (Each Roller 4.6 metre long & 110mm dia), 16 metre (2 metre of each Section) in ventilated Length, 3.2 metre Height, having 8 Nos. compact Drying Chambers (partition in each Chamber) with 4 decks, 1.9 metre Single Roller (3 dia) veneer Feeding Conveyor for each deck and 1.3 metre long Cooling Section. The Dryer is fitted with Aluminium Propellers having 4 sets (each set of two) of double Jet Nozzles for top & bottom of each deck throughout the length of the dryer, 16metre Heating zone. The machine is complete with Thermic Fluid/Steam Heating Coils, Top Dampers, Motors, Starters, AC Drive (Infinitely Variable Speed Unit), Digital Temperature Indicator, Transmission Chain & Gear Box. The entire outside covering of the dryer is perfectly sheet metal body insulated seal & Top covers with heat resisting insulated layer of 100mm thick all round. The following Motors will be supplied by us :-

8 Nos. 5 HP, 960 RPM, AC, 440 V for Aluminium Fans
2 Nos. 1.5 HP, 960 RPM, AC, 440 V for Cooling Section
1 No. 7.5 HP, 1440 RPM, AC, 440 V for AC Drive Total Power 50.5 HP (37.65KW)

Production capacity of the above 8x4 Dryer :
* 310000 Sq.Ft. dried veneer on 1.8mm thick veneer basis in 3 shifts (24 Hours) working day in Thermic Fluid (Oil) Heating system at a temperature of 1600 to 1700.

On Steam Heating Media : Production will be less than the Thermic Fluid Heating.
