Updated Ventilation Fan - Galvanized Sheet 1380x1380x450mm, Aluminum Alloy Blade | Hypothermia, Anti-aging, Durable, Anti-corrosion

We are engaged in exporting excellent quality Updated Ventilation Fan to our valuable clients. Ventilation system has three parts including the large fan, the small fan and the air inlet and each has its own function of hypothermia The fan is focus on blowing the inside air outlet so as to the flesh and cooling air can enter into the poultry house from the air inlet and the cooling pad.

a The air inlet is adopted the engineering- plastics materials, having the characteristics of anti-UV, anti-aging and durable. The polystyrene insulation material of board ensure that the inlet has a good warm- keeping effects. The specification of air inlet is adopted the dimension as 600* 330 *170mm, the protective net is designed reasonably to prevent the birds and insects. The pulley on air inlet is used the patent design with rolling friction lower resistance and easily switch on and close. Spring is adopted the stainless steel of high quality to ensure its anti-corrosion and robustness.
a we have two kinds of fans: cone fans and box fans in two models of 50 and 36.

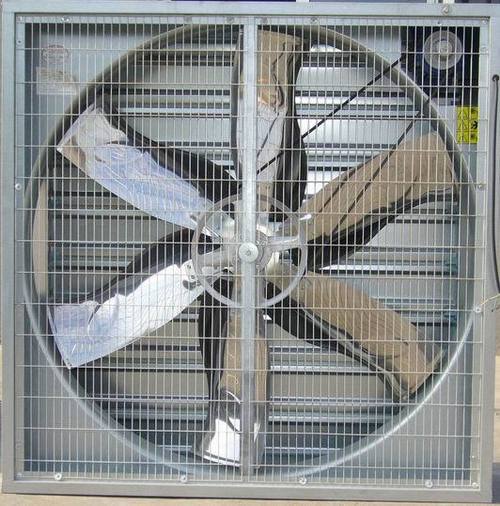

Specification(box fan) : 1380*1380*450mm
Power : (3ph.50HZ)1.1KW
Exhaust air rate : 43940m3 / h
Framework : Galvanized sheet(thickness of zinc: 275g/m3 )
Blade : The aeronautical aluminum alloy imported from Italy(diameter: 1270mm)
Window- shades : Hot dip galvanized blade
Belt pulley : V belt pulley made by the high strength, light Al-Mg alloy material.
Leather belt : Import from Japan
