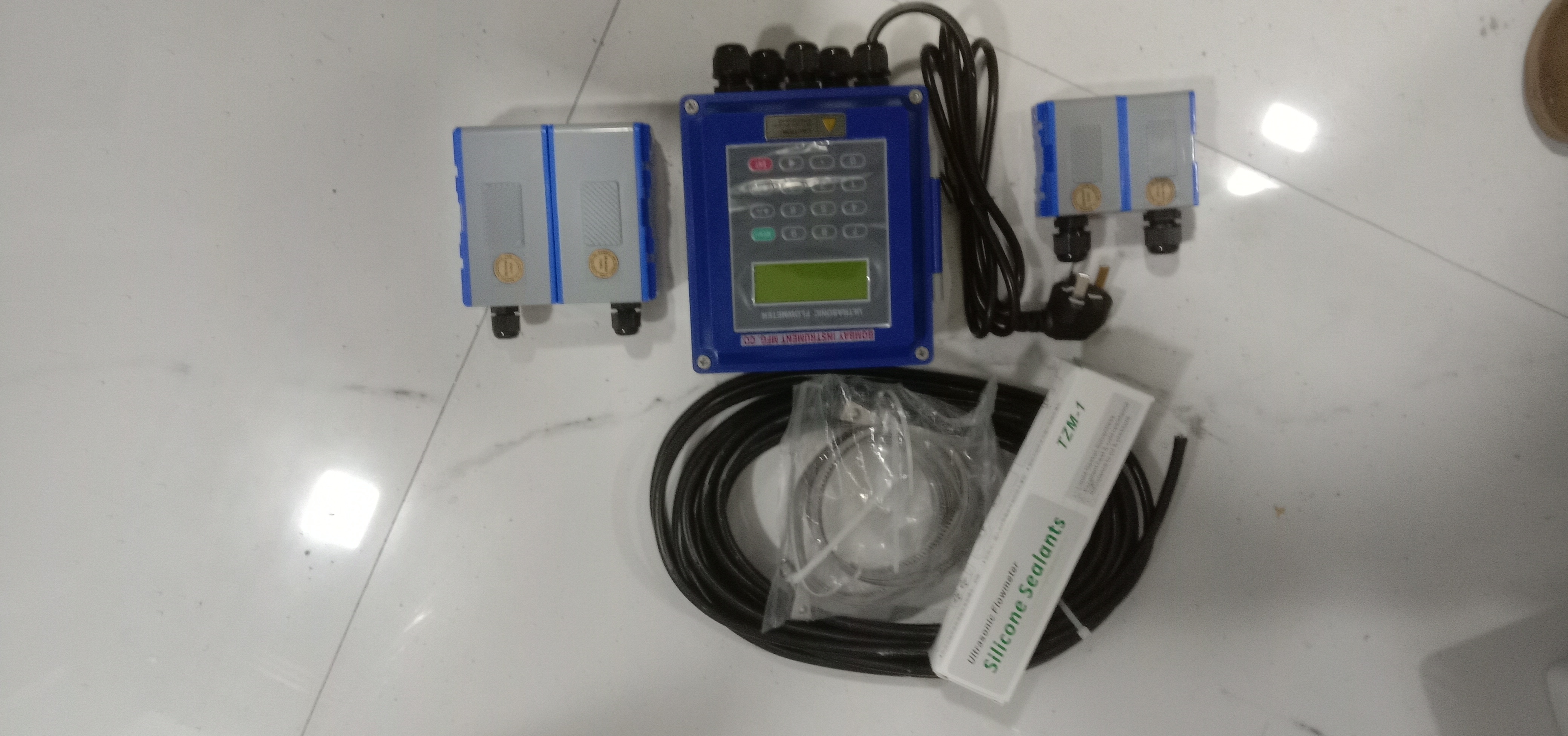

Ultrasonic Digital Flow Meter - Accuracy: +/-1 %

MODEL NO. : UF-HH-10
For more information, You can see the working of our flow meter on https://youtu.be/36oK54cw9sc
Ultrasonic Flowmeter
Battery / Mains Operated HAND HELD TYPE
Mounting : Wall/Hand hold
Sensor : S, M & L Type (Standard: M-Type)
Sensor suitable for Pipe: S Type DN15mm to DN100mm (Optional )
M Type DN50mm to DN700mm - Will provide
L Type DN300mm to DN6000mm - (Optional )
Clamp : Standard for DN500, Additional on extra cost
Data Recorder : Available with Flowmeter
Display : LCD with backlight, display accumulated flow/
Instantaneous flow / velocity, time etc.
Transducer : Water - Immersible, water depth less than 1m
Velocity range : 0.1 to 5 m/s
Sensor Protection : IP68 as per IS13947
Accuracy : +/-1%, Linearity: 0.5%, Repeatability: 0.2%
Technology : Ultrasonic Transit time flow
Functions : Automatically record the totalizer data with recording facility
Make : BIMCO - Bombay Instrument
Qty : 01 Set.

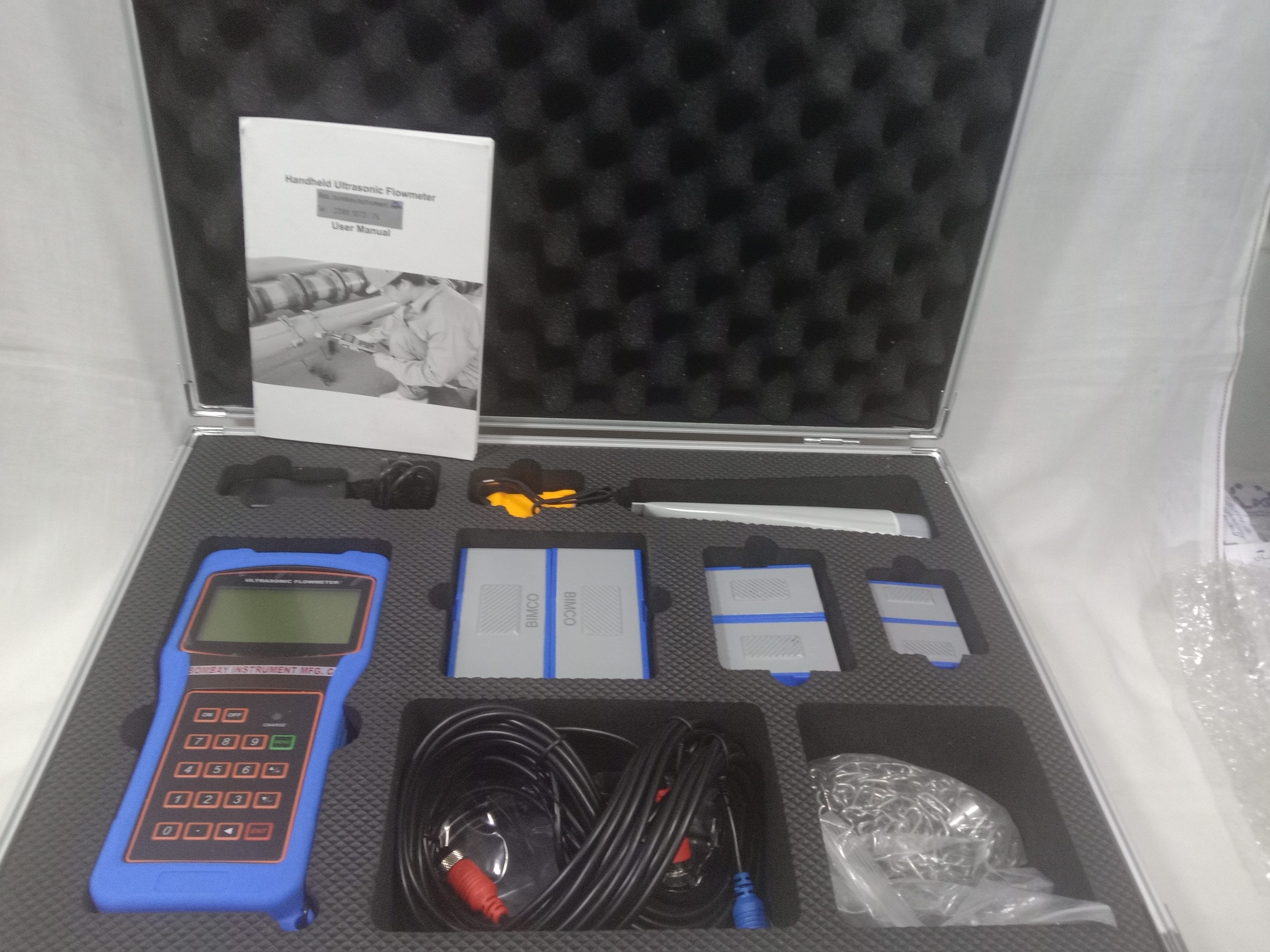

Complete Set in One Suitcase
Other details as Per Attached file.
