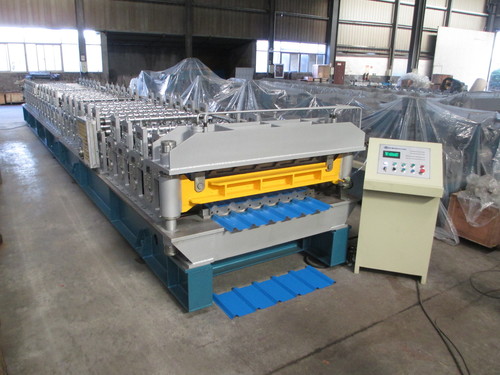

Two Profiles Double Layer Machine

We are into export, manufacture & supply Two Profiles Double Layer machine to our customers from hangzhou, Zhejiang, China.

Raw Material:
1. Material: color steel sheet or galvanized steel sheet
2. Yield strength: 235Mpa-345Mpa
3. Thickness: 0.3-0.7mm

Machine spec.
1. Size: about 15*1.8*1.4m (L*W*H)
2. Weight: About 13ton
3. Color: Make-to-order
4. Forming Speed: 20m/min.
Working Speed:about 15m/min
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 7.5Kw(Depend on final design)

Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option) 1 set
Feeding & guiding device 1 set
Main roll forming machine 1 set
Hydraulic cutting system 1 set
Controlling system 1 set
Run out table (auto. Stacker for option) 2 pcs

Components spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Hydraulic station power: About 2.2Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length

Packing:
1. one 40GP and one 20GP containers for loading one set of machine with mechanical decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Delivery : within 50 days

Trade terms: FOB, C&F, CIF available.
