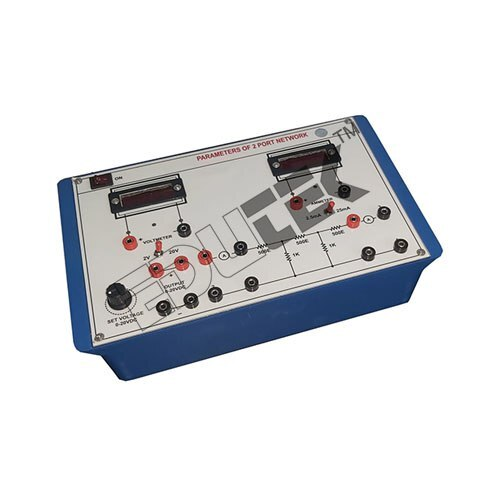

Two Port Network Parameters - Application: Engineering Electronics Instruments
Price: 1200.00 INR / Piece
(1200.0 INR + 0% GST)
Get Latest Price
In Stock
Product Specifications
| Output | Dual channel output for response voltage and current measurement |
| Power Source | AC mains supply |
| Response Time | Instantaneous (limited by measurement instruments) |
| Operating Temperature | 0C to 50C |
| Usage | ENGINEERING ELECTRONICS INSTRUMENTS |
| Features | Complete self-contained trainer, easy-to-understand circuit diagram, provision for different parameter measurements, rugged ABS casing, easy connections with safety connectors |
| Resolution | Depends on external measuring instruments |
| Power Supply | 230 V, 50 Hz AC mains supply |
| Components | Built-in circuit network, connecting terminals, test points, internal resistors, capacitors and inductors |
| Display Type | Other, Panel printed diagram; external meter connection required for readings |
| Interface | Banana sockets and external meter connections |
| Input | Dual channel input for excitation voltage and current |
| Color | Multi-color on white background |
| Product Type | TWO PORT NETWORK PARAMETERS |
| Application | ENGINEERING ELECTRONICS INSTRUMENTS |
| Rated Voltage | 230 V AC |
| Supply Voltage | 230 V AC 50 Hz |
| Size | Standard desktop unit |
| Dimension (L*W*H) | 350 x 240 x 110 mm (approx.) |
| Function | Measurement and illustration of Two Port Network Parameters in electrical networks |
| Weight | Approx. 2.5 kg |
| Current Rating | Up to 1 A (maximum test current) |
| Capacity | Suitable for groups of 2-4 students |
| Thickness | 3 mm front panel thickness (approx.) |
| Frequency | 50 Hz operation |
| Payment Terms | Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C) |
| Packaging Details | Carton Box, Export Quality also Available |
| Main Export Market(s) | Asia, Middle East, Africa |
| Main Domestic Market | All India |
| Certifications | ISO 9001, 14001, CE |
| Color | Multi-color on white background |
| GSTIN | 0% |
Product Overview
Key Features
TWO PORT NETWORK PARAMETERS
Front panel built with high class insulated Printed Circuit Board sheet with well printed circuits and symbols.
Fuse for Short Circuit protection
