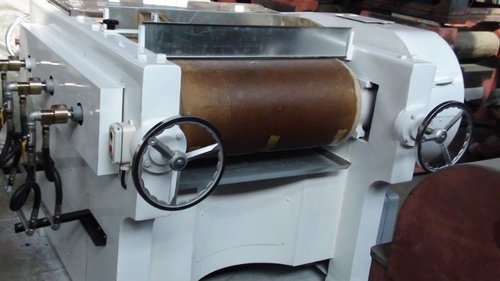

Triple Roll Mill - Chilled Cast Iron, 250 Kgs/hr Production Rate | Hydraulic Roll Gap Adjustment, Central Cooling System

Triple Roll Mills


Oil Grade

•
  Gear Box : VG 320
•
  Gear train: VG 40

'AMPL ' Roll Mills are designed for milling all types of materials.

• These are available with three / five rolls and in angular or horizontal axis.
• Rolls
  are made of either chilled cast iron with 550 BHN or steel rolls with
  hardened stainless steel sleeve ( in order to regenerate worn surface).
• Roll gap adjustment is controlled either manually or hydraulically.
• Rolls have central cooling arrangements with flexible rotary joints.


Technical features available as options

• Digital read out indicator for measuring roll gaps.
• Fluid coupling for slow start Individual thermo regulation system for each roll .
• Double pass milling.
• Closed loop circulation system .


Note

• Production rate depends upon the material characteristics.
• Basic models are also available without automation.
• All dimensions / specifications are subject to change due to design developments.
