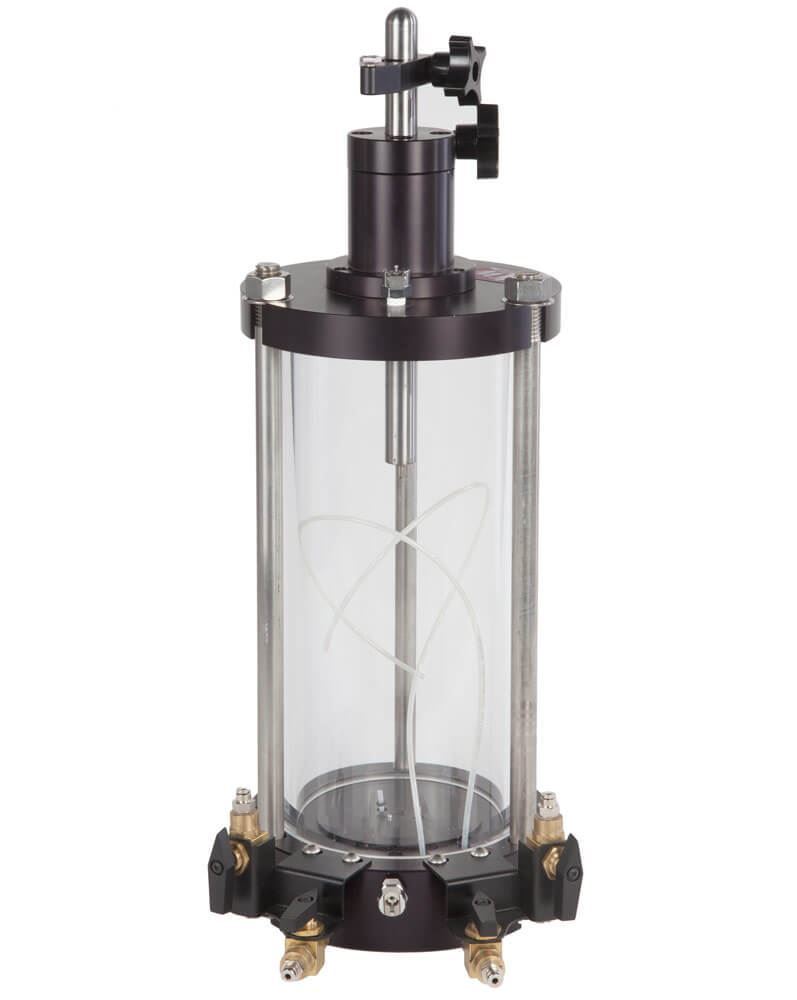

Triaxial Cell Machine Weight: 30-50 Kilograms (Kg)

1.The cell is useful for testing 38 mm dia. x 76 mm high soil specimen.

2.Transparent Perspex chamber with anvil and loading plunger.

3.The cell is easily opened by releasing four nuts of the tie rods.

4.It is leak proof up to 10kg/cm sq. fluid pressure.

5.An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water.

6.This provided effective sealing at the plunger for long duration test.

7.The cell is fitted with four sleeve packed valves of no volume change type on the base.

8.These valves are used for cell pressure, pore water pressure, drainage or back pressure.

9.The loading plunger of the cell has a dial gauge rest.

10.Loading pad made of Perspex for 38mm dia. specimens.

11.Pair of plain discs made of Perspex 38 mm dia mm dia. 6 mm thick.

12.Pair of porous stones 38mm dia. x 6 mm thick.
