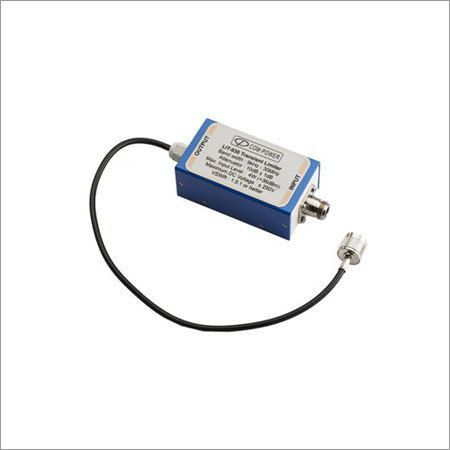

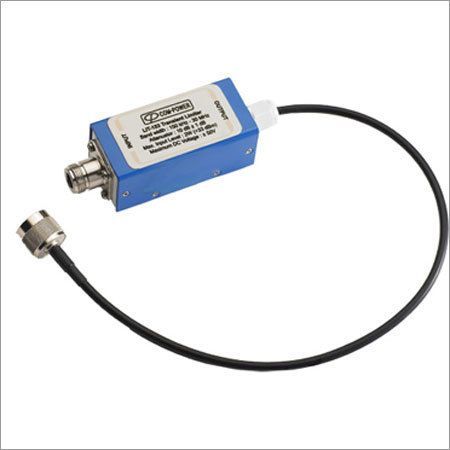

Transient Limiters - 100x50x35 Mm, 9 Khz-30 Mhz, 10 Db Attenuation, N Type Connectors, Emi Protection, Spectrum Analyzer Safeguard
Get Latest Price
In Stock
Product Specifications
| Frequency range | 9 kHz - 30 MHz |
| Insertion loss | 10 dB |
| Max. input level | 4 Watts |
| VSWR | <1.1:1 |
| Connectors | N type |
| Dimensions | 100 x 50 x 35 mm |
| Usage | EMI receiver protection during conducted emissions testing with LISN |
| Features | EMI protection, Conducted emission testing, Spectrum analyzer safeguard, High attenuation, Excellent VSWR |
Product Overview
Key Features
- Frequency range: 150 kHz - 30 MHz
- Insertion loss: 10 dB +1.5 / -0.5 dB*
- Max. input level: 2 Watts CW (+33 dBm) 10 Vdc
- VSWR: <1.1:1
- Connectors: N type (input and output)
- Dimensions: L 3.0 (75 mm) W 1.25 (32 mm) H 1.25 (32 mm)
