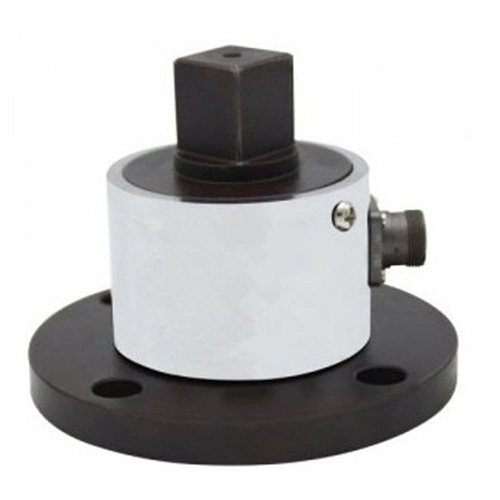

8627- Torque Sensor

8627- Torque Sensor

Price:

Get Latest Price

Minimum Order Quantity :

1 Piece

In Stock

In Stock

Product Specifications

MaterialSteel,aluminum
DimensionsVaried
Measurement range0...5000Nm
Linearity error0.1%F.S
Strain gaugesFour metal film
Output signal0...10V, 0/4...20mA
TEDSOptional
FeaturesPrecise measurement, Durable design, Easy assembly, Standardized output, High accuracy, Wide range, Maintenance-free, Customizable
Main Export Market(s)North America
Packaging DetailsWeight: 1Kilograms
FOB PortHamburg
Delivery Time1 Week
Supply Ability1 Per Week
Sample AvailableNo
GSTIN0%

Product Overview

Key Features

This torque sensor is qualified for static and dynamic measurements on non-rotary applications.

Further the measurement of reaction torques on rotating machine parts is possible. Especially the torque sensors with flanges are preferred. They are mounted between motor and stator, e.g. in agitator drives. This enables a maintenancefree torque measurement.

For individual measuring tasks the design of our torque sensors can be adapted to the customer's installation conditions.

More application examples:
Test structures in the field of precision mechanics
Determination of friction torques
Acquisition of breakage moments on screw caps

The design has been optimized regarding overall length, weight and volume, so that axial forces up to relatively high limit values and bending moments of up to 20 % of the measuring range have only a small effect to the influence of the measuring element. Four metal film strain gauges are mounted on the measuring element and connected to form a full bridge. When applying AC or DC voltage on the bridge, the mechanical value torque is converted into electrical voltage. The necessary amplifier either delivers a norm signal (0 ... 10 V, 0/4 ... 20 mA) or - with indicator module - a torque signal truly corresponding to the measured variable.

The sensor output signal is standardized, so that an exchange of the sensor (spare part) does not require any new adjustment of the measuring chain.

The option burster TEDS (electronic data sheet, programmed memory chip) allows a quick configuration of compatible sensor electronics.

FEATURES:
-Measurement range from 0 ... 500 Nm to 0 ... 5000 Nm
-Linearity error 0.1 % F.S.
-Reliable and durable
-Simple handling and assembly
-Output signal standardized
-Optional linearity error 0.05 % F.S.
-Optional with burster TEDS

Company Details

With passion for precision and quality the German brand burster precision measurement technology develops and manufactures since 60 years as one of the most important suppliers precision instruments, sensors and systems for sensor signal processing and process monitoring. burster applies highest quality standards in its production of components and systems in accordance with EN ISO 9001:2015. burster supplies 7500 customers worldwide. bursters innovative and experienced team provides intensive application support even before a decision to buy is made. Solving complex measurement problems and integrating measurement and test technology into production environments for production control, quality assurance and test-equipment monitoring are everydays instrumentation tasks. burster supplies measuring technology ranging from individual sensors to system solutions, with emphasis on plant construction and engineering, automation, the automotive industry and its suppliers, electrical and electronic engineering and chemicals industry. It also has a presence in numerous other sectors and future markets such as electro-mobility, alternative energies, medical engineering and biotechnology. In addition to solutions employing standard products, burster provides custom OEM solutions. Many years of experience as manufacturer of measuring sensors and instruments guarantee optimum solutions. This has earned burster an international reputation for innovation geared to customers needs.

Business Type

Manufacturer

Employee Count

150

Establishment

1961

Working Days

Monday To Friday

Payment Mode

Letter of Credit (L/C), Telegraphic Transfer (T/T)

Certification

DAkkS-Akkreditierung, ISO 17025, ISO 9001:2015
