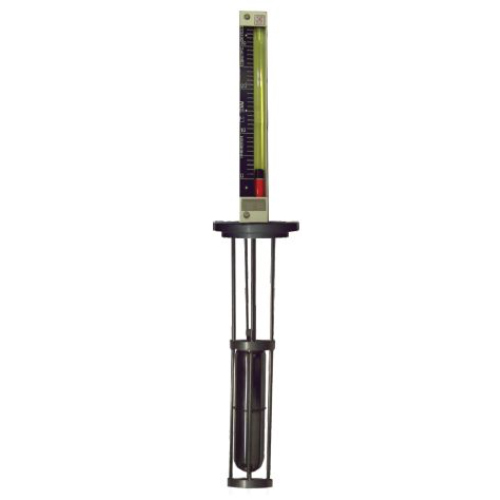

Top Mounted Magnetic Level Indicators - Color: Silver

Price:

Get Latest Price

Minimum Order Quantity :

1 Piece

In Stock

Product Specifications

Cut Size	As per tank opening
Humidity %	0 to 100% RH
Equipment Type	Level Indicator
Pressure Range	Vacuum to 10 kg/cm2
Sensitivity	High (mechanical float movement)
Model	Top Mounted Magnetic Level Indicator
Current Range	Not Applicable (unless transmitter installed)
Storage Temperature	-40C to +80C
Mounting	Top Mounted, Flanged/Bolted
Load Capacity	Designed for full tank load
Application Media	Water, Oil, Chemicals, Acids, Solvents
Temperature Range	-40C to +150C
Connectivity Type	Mechanical (optional electrical switch output)
Operating Temperature	-40C to +150C (application dependent)
Signal Type	Optional Reed Switch/4-20 mA (if equipped with transmitter)
Housing Material	Stainless Steel/PP
Stability	High, Mechanical Operation unaffected by power supply
Connector	Flanged or threaded
Resolution	10 mm
Measuring Units	Millimeters (mm), Centimeters (cm)
Measurement Range	Up to 5000 mm (custom)
Process Connection	Flanged 2/3/4 or custom
Diameter	Typically 50 mm-100 mm float size
Language	English Scale
Length	Custom-up to 5 meters or more
Sensor Type	Magnetic Float Sensor
Input	Tank fluid level (mechanical displacement)
Axis Type	Vertical
Dimension (LWH)	As per installation (custom length, typical float up to 250 mm long)
Protection	Weather Proof, Optional Flameproof/Ex-proof
Capacity	Tank dependent
Output	Optional-Switch or transmitter output available
Response Time	Instantaneous (Mechanical Response)
Color	Silver/Steel with Colored Level Indicator
Connecting Type	Flanged (ANSI/DIN/ASA) or Threaded Connection
Usage	Industrial
Material	MS
Power Supply	Not Required (Mechanical Operation)
Power Consumption	Zero (Passive Device)
Accuracy	10 mm or better
Display Type	Digital Only
Range	Customizable as per tank size (commonly up to 5000 mm)
Supply Ability	1000 Per Month
Delivery Time	7 Days
