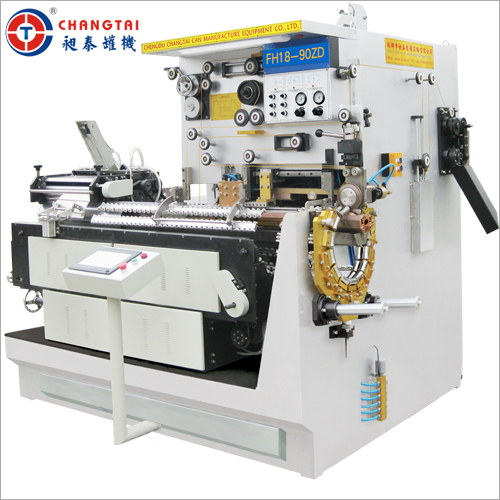

Tin Can Side Welding Machine - Tin, 1.3x1.1x1.85m | Semi-automatic, Plc Control, 20-70 Cans/min, 0.18-0.38mm Thickness

Our company is the noteworthy names engaged in supplying a wide range of Tin Can Side Welding Machine in Xian, Shaanxi, China. This machine is designed to convey the cans by manual operation, the cans come in from the front part of the machine and come out from the back. The overlap of the cans is controlled by the calibrator and the overlap parts are welded according to the principle of resistance welding. PLC and touch screena s control makes the machine easy to operate, the frequency welding makes its products handsome in shape and its simple structure makes it convenient to change the molds of the cans.

Specification parameter
Materials Tin, substrate ironProduction capacity20-70Cans/min
Materialsa thickness0.18-0.38mmWelding frequency 80-260Hz
Can diameterI 65 ~ I 290mmCooling water flow7L/min
Can height70- 400mmCooling water pressure 0.4Mpa
Seam overlap 0.4-2.2mmCooling water Temperature a 20a
Welding speed6-16m/minCopper wire diameter I 1.38 ~ I 1.5mm
Total power10KVADimensions 1.3mA 1.1mA 1.85m
Power supply voltage3 phase AC380V/50HzTotal weight 980Kg
