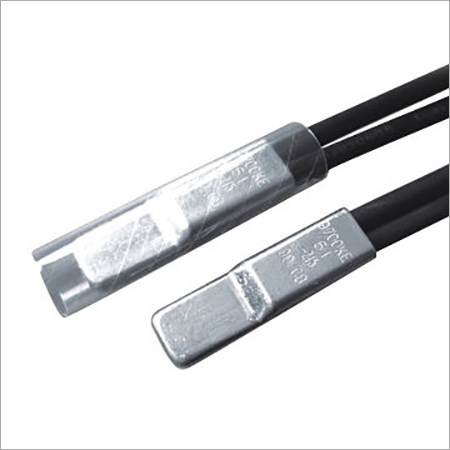

Thermal Protector - 15x5.4x2.4mm Dimensions | Single-use Thermal Detectors For Battery Packs, Motors, Heating Appliances, Portable Power Tools

We are the largest exporter, manufacturer and trader of thermal protector in New Taipei City, Northern Taiwan, Taiwan. Thermal Detectors is a cutoff which uses a one-time fusible link. Unlike a thermal switch which may automatically reset itself when the temperature drops, the thermal fuse is more like an electrical fuse: a single-use device that cannot be reset and must be replaced when it fails or is triggered. A thermal fuse is used when the overheating is a result of a rare occurrence, such as failure requiring repair (which would also replace the fuse) or replacement at the end of service life.

Applications:
Battery packs, shaded pole motors, AC motor and pump, Fluorescent ballasts, Transformers, Heating appliance, Portable power tools (Replacement of MM or V & Va Series)

Specification:
Dimension case15*5.4*2.4mm
leading wire70mm normal
Maximum contact ratings10K(4A/12VDC 3A/24VDC 3A/120VAC 2A/250VAC)
Opening Temperature30~155a
ToleranceA 5 A 3 A 1 a
Resistanceless than 25 mIC
