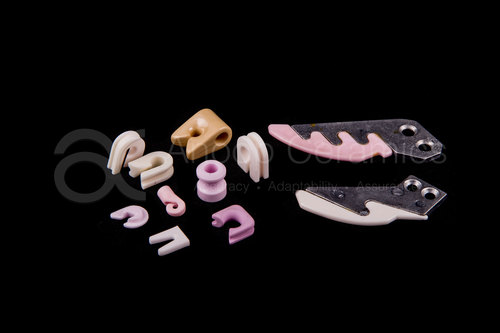

Textile Ceramics - 75-99.5% Al2o3, White, Sintering Temp 1750â°c, Hra ≥ 85, Density 3.6 G/cmâ³, Ra 0.4~0.8, Customizable, Durable, Low Friction, Wear Resistant

We are offering our customers a wide range of Textile Ceramics, which are available following Specifications :-
1.Material:75-99.5% Al2O3
2.Method of moulding:Thermal casting/dry press/ extrusion
3.do not wear easily
4.low friction

1.Material:95% Al2O3
2.Method of moulding: Thermal casting/dry press/ extrusion
3.Colour:white
4. Sintering temperature:1750oC
5.Material characteristics: HRA&ge 85 &rho&ge 3.6.
6.Surface finish: Ra0.4&simRa0.8&mum
7.Packing: pack with carton and ship with wooden case
8.Produce products according to molds or drawings provided.
by the client and quote according the data of the products.
9.Minimum Order: 2000pcs
10. The mould fee of the non-standard products: According the quotion of product.

Physical analysis sheet for 95%Al2O3
Density g/cm3 3.6
Substance Characteristic Water Absorption O
Sinter Temperature 1710
Physical Characteristic Hardness HV a Y12
Bending Strength Mpa a Y310
compressive strength Kgf/cm2 25000
Elastic Modulus GPa 300
fracture toughness Map.m3/2 3 to 4
Max Using Temperature 1450
Thermal Characteristic Coefficient of Thermal Expansion 1X 10-6/A C 8 heat-resistant Temperature T() 220
Thermal Conductivity W/m.k(25-300) 24
20 >1012
Volume Resistance 100 >.cm 1012-1013
Electric Characteristic 300 >1010
Dielectric Strength KV/mm 18
Dielectric Constant 100MHz(E) 9.5
