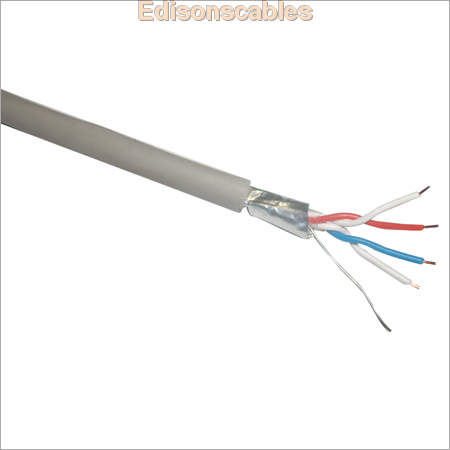

Telephone Cables - Solid Annealed Bare Copper 0.41mm/0.51mm, High Density Polyethylene Insulation, Grey Pvc Jacketed, Minimizes Cross Talk

Our proficiency in this domain enables us to manufacture and supplied the Telephone Cables in Bhiwadi, Rajasthan, India. Twisted telephone pair cabling is a type of wiring in which two conductors are twisted together for the purposes of canceling out electromagnetic interference (EMI) from external sources.. SPC cables can be used for switchboard and internal telephone wiring in high-rise buildings, offices, factories, hotels, residential complexes, etc. They generally conform to ITD specifications G/WIR-06/02.

CONSTRUCTION :
Conductor : Solid high conductivity annealed bare copper available with 0.41 mm or 0.51 mm.
Insulation : High density polyethylene with nominal thickness 0.17 mm for 0.41 conductor or 0.20 mm for 0.51 mm solid conductor. I
Pair Identification : SPC colour Code / ITD 3003 and 113C.
Laying up : The insulated cores are twisted with uniform lay to form pairs and are bunched together in such a manner so as to minimise cross talk. In 50 and 100 pair cables units of 10 and 20 pairs respectively are identified with colour binders and stranded to form the laid up cable. The laid up cable is taped with polyester tape
Sheath : Specially formulated in house PVC Jacketed to protect the cable from mechanical damages and longer life.
Colour : Grey or as per customer requirement.
Packing Available : 100 Mtr/Coil and 1000 Mtr/Drum
