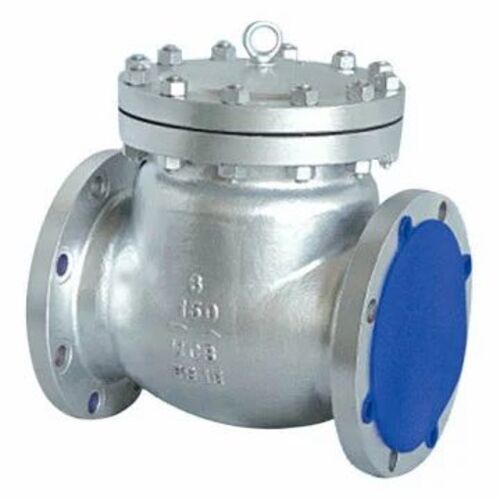

Swing Check Valve By Sunford Valves Company

We are one the leading manufacturer, exporter, distributor and supplier a myriad collection of Swing Check Valve in Surat, Gujarat, India. Swing check valves are single direction flow valves used to allow unlimited flow in one direction & to restrain flow in the opposite direction. Valves are best suited for moderate velocity applications & normally designed for installation in horizontal lines. Special features like counter weight, hydraulic cylinder and other features are available on request.

Specifications:-
Standards
Design standard BS 1868/ ASME B 16.34
for 1/2" to 1 1/2" API 602/ ISO 15761
API 6D/ASME B 16.34
Testing standard API 598/ BSEN 12266 PART-1
face to face dimensions for butt weld and flanged valves ASME B 16.10 / BS 2080
API6D
flanged design ASME B 16.5
Butt -weld design ASME B 16.25
pressure- temp rating ASME B 16.34
Body-Bonnet joint Bolted bonnet
Male & Female
Tough & groove
Ring type joint (RTJ)

Material
Operator size & class
Shell WCB , WCC , LCB , LCC , WC6 , WC9 , C5 ,
C12 , CF8 , CF8M , CF3 , CF3M , CF8C , CN7M ,
Duplex SS, Hastelloy Monel, etc.
Trim Trim 1 , Trim 2 , Trim 5 , Trim 8 , Trim 9, Trim 10
