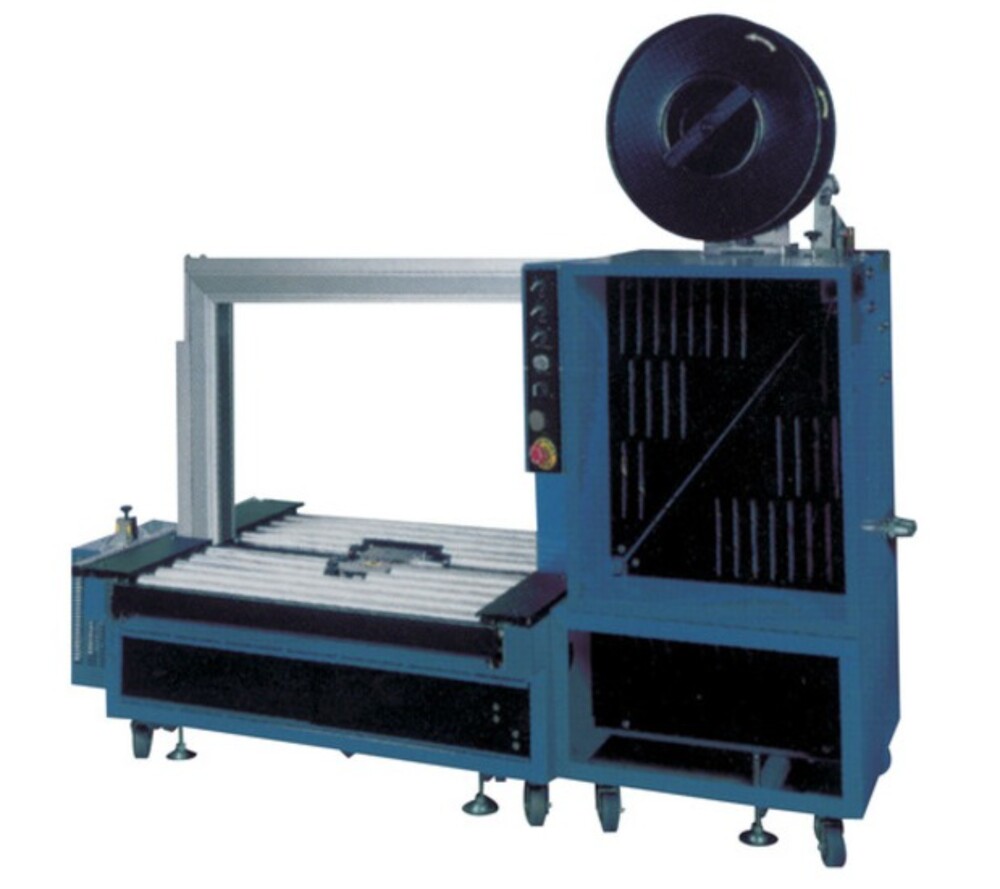

Strapping Machine - Capacity: 200 Kg/hr

Strapping Machine Short Specification

1. Machine Type

Semi-automatic / Automatic (floor model or table model)

2. Strapping Material

Material: Polypropylene (PP) or Polyester (PET)

Strap Width: 9 16 mm (common)

Strap Thickness: 0.50 1.27 mm (varies by model)

3. Performance

Strapping Speed: 1.5 2.5 sec per cycle

Tension Force: Adjustable (e.g., 10 70 kg depending on model)

Cycle Rate: 20 30 straps per minute (model dependent)

4. Power

Voltage: AC 220240 V / 110 V (region specific)

Frequency: 50/60 Hz

Power Consumption: 300 600 W

5. Dimensions & Weight

Machine Size (approx.): 600 400 800 mm (floor type varies)

Weight: 40 80 kg (table model lighter, floor model heavier)

6. Operational Features

Automatic strap feed and cut

Adjustable tension control

Safety cover switch

Foot-pedal or automatic start

Easy reel change

7. Performance Indicators

Strap coil capacity: Up to 300500 m per reel

Max bundle height: Typically unlimited (open frame)

Max strap roll outer diameter: 200300 mm

Optional / Advanced Features

Sensor-based automatic tension

LCD control panel

Conveyor integration (for inline strapping)

Battery / portable versions

Different strap widths (e.g., 12/15/19 mm depending on need)
