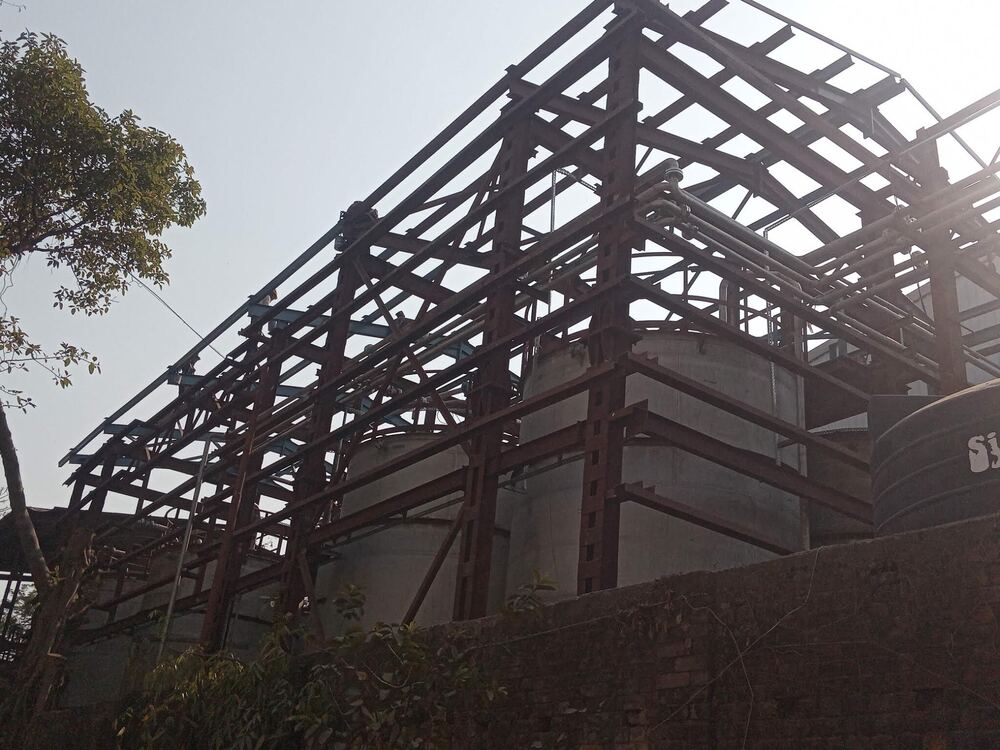

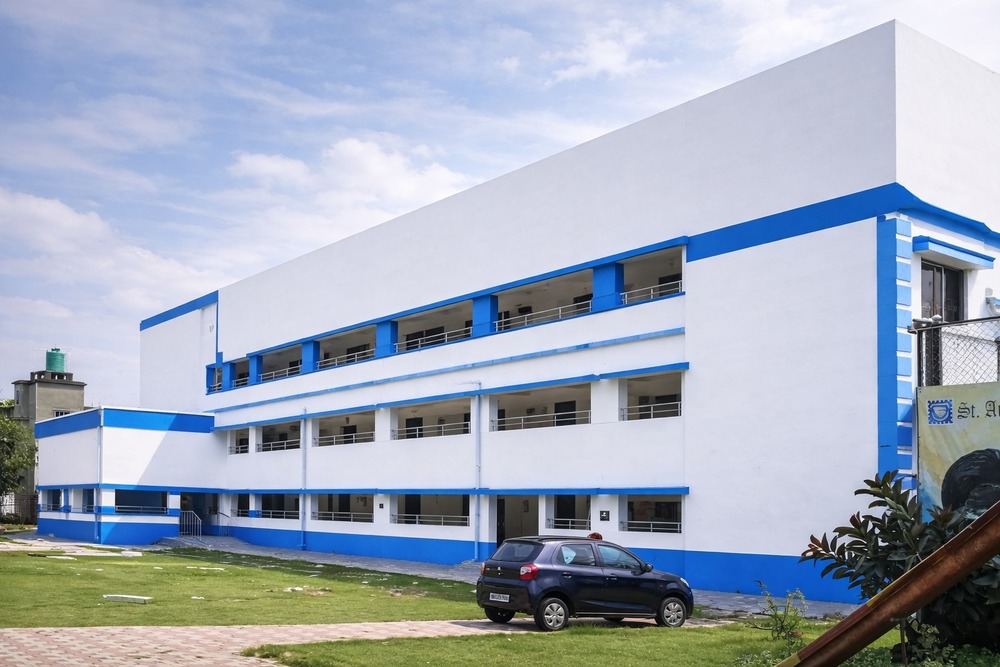

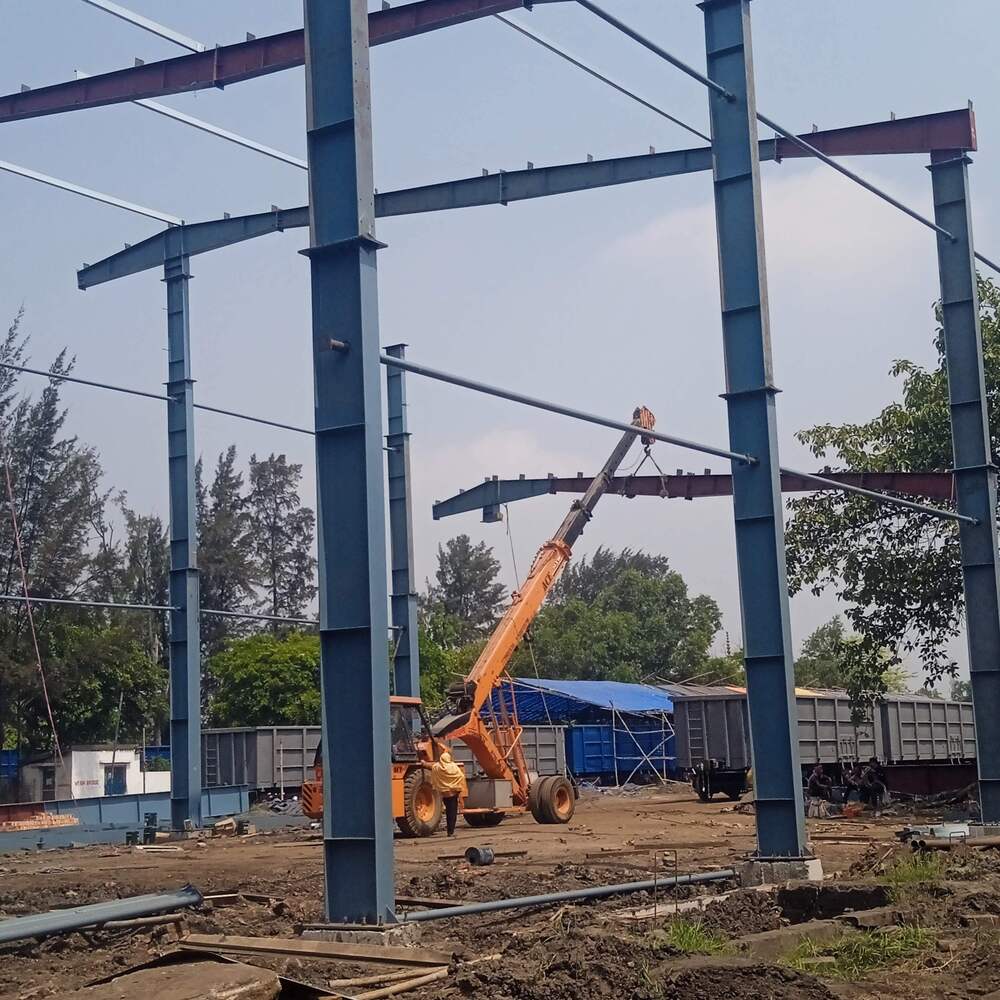

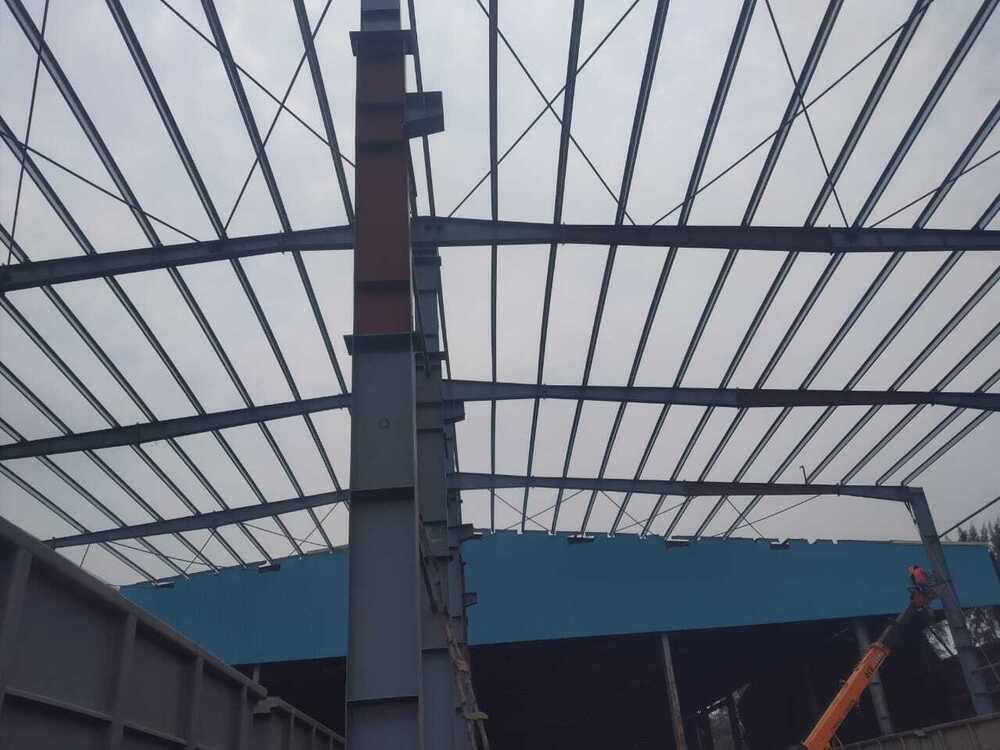

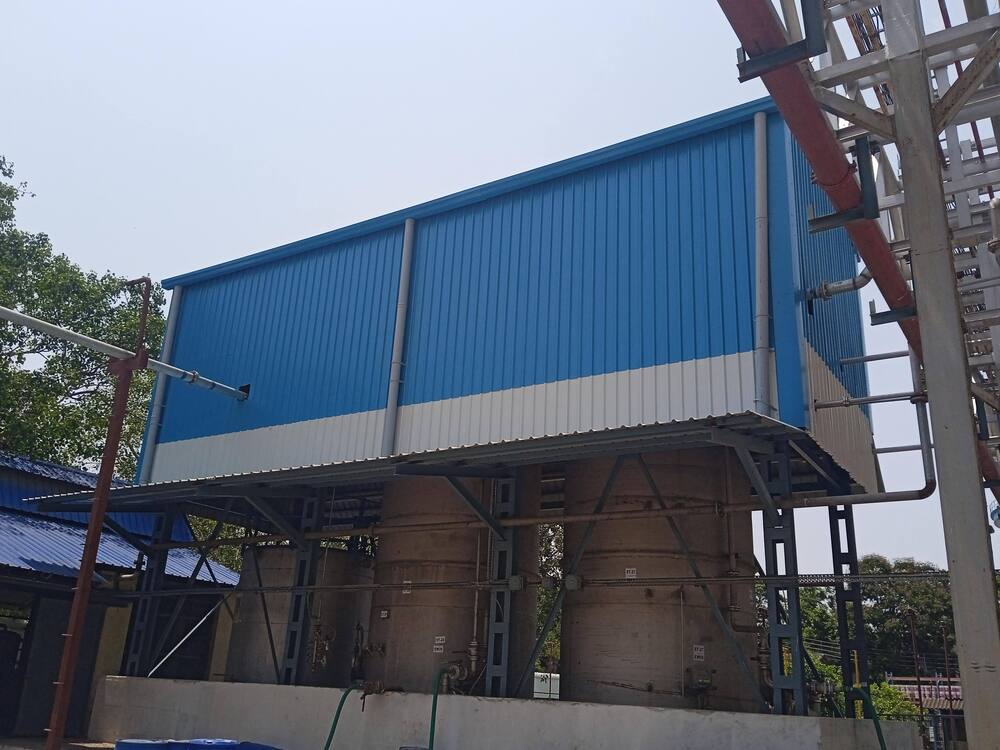

Steel Pre Engineered Building Structure - High Strength Steel, Custom Sizes, Blue/white, Seismic Zone Iii-v Compliant, Hot Dip Galvanized
Price: 550.00 INR / Square Feet
(550.00 INR + 0% GST)
Get Latest Price
1 Pack Contains :
1
Minimum Pack Size :
20
In Stock
Product Specifications
| Door Material | Other, Steel or aluminum alloy |
| Connection | High-strength bolted connection |
| Dimension (L*W*H) | As per client requirement (customizable sizes) |
| Life Span | 25-50 years |
| Window Material | Other, Aluminum alloy frame with glass |
| Insulation | Other, PUF, EPS, or glass wool insulation |
| Open Style | Other, Sliding, Swing |
| Color | Blue, white, or customizable |
| Wall Materials | Other, Sandwich panel or profile steel sheet |
| Material | Other, High strength structural steel (Q235/Q345 or IS2062) |
| Roof Material | Other, Galvalume/Color coated steel sheet |
| Thickness Of Wall Panel | 50mm-100mm |
| Door | Other, Single/Double leaf, Roll up or sliding |
| Window | Other, Glazed/Non-glazed, Louver options |
| Window Style | Other, Fixed, Sliding |
| Floor Material | Steel deck with concrete topping |
| Floor Load | 2.5 kN/m2 - 5 kN/m2 (customizable) |
| Roof Dead Load | 0.30 kN/m2 |
| Roof Live Load | 0.57 kN/m2 |
| Earthquake Intensity | Seismic Zone III-V compliant |
| Use | Other, Industrial, Warehouse, Factory, Commercial, Storage |
| Mop | 20 |
| Product Unit | 20 Square Feet |
| Moq | 20 |
| Unit Type | Square Feet |
| Currency | INR |
| Brand Name | Prefab Building structure |
| Packsize | 1 |
| Price Type | fixed |
| Stock Quantity | 100 |
| Price | 550.00 INR (Approx.) |
| Color | Blue, white, or customizable |
| Returnable | No |
| Minimum Ordered Packs | 20 |
| Minimum Order Quantity | 20 |
| GSTIN | 0% |
Product Overview
Key Features
One of the biggest advantages of prefabricated steel structures is rapid construction. Since most parts are pre-engineered and ready for installation, the time required for on-site work is greatly reduced. This helps save labor costs and allows projects to be completed faster than conventional construction methods.
Steel structures are also known for their strength and durability. Steel has a high load-bearing capacity and excellent resistance to external forces such as wind and earthquakes. At the same time, the lightweight nature of steel reduces the pressure on foundations and makes transportation easier.
Another important feature is design flexibility. Prefabricated steel buildings can be customized into different shapes, sizes, and layouts according to project requirements. Future expansion or modification is also easier compared to traditional concrete buildings.
In addition, prefabricated steel structures are environmentally friendly. Steel is recyclable and reusable, reducing construction waste and supporting sustainable development. Factory-controlled production also ensures better quality control, improved accuracy, and reduced material wastage.
Overall, prefabricated building steel structures provide an efficient, economical, durable, and sustainable solution for modern construction needs.
