Sparkler Filter Press - Stainless Steel Shell & Top Cover , Efficient Cake Formation With High Filtrate Clarity

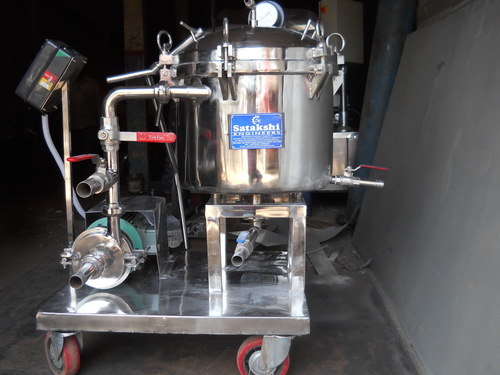

Being a clients centric organization, we are engaged in providing a precisely designed range of Sparkler Filter Press that are made by our by us using superior quality raw material. It is a sparkler type and consist of S.S. Shell & Top cover using bolts to give pressure tight enclosure. The filter cartridge assembly inside the shell consists of several vertically arranged disc type filter plates with perforated supporting screens, filter media & interlocking cups. The entire assembly complete with pump & piping connection is mounted on a suitable S.S. Trolley. The impure liquid to be filtered is fed to the filter shell by pump. It arrives on top of each plate through opening on the sides of plates. As liquid pressure increases, the filter media (Paper/fabric) holds back the impurities & allows the crystal clear filtrate to pass through the central channel (formed by interlocking cups) which takes the filtrate to the outlet of filter. This filter most commonly used to obtain clear liquid. However if required, the cake formed between the plates can be obtained. Filtration is continued until its rate becomes very slow due to increased cake resistance.
