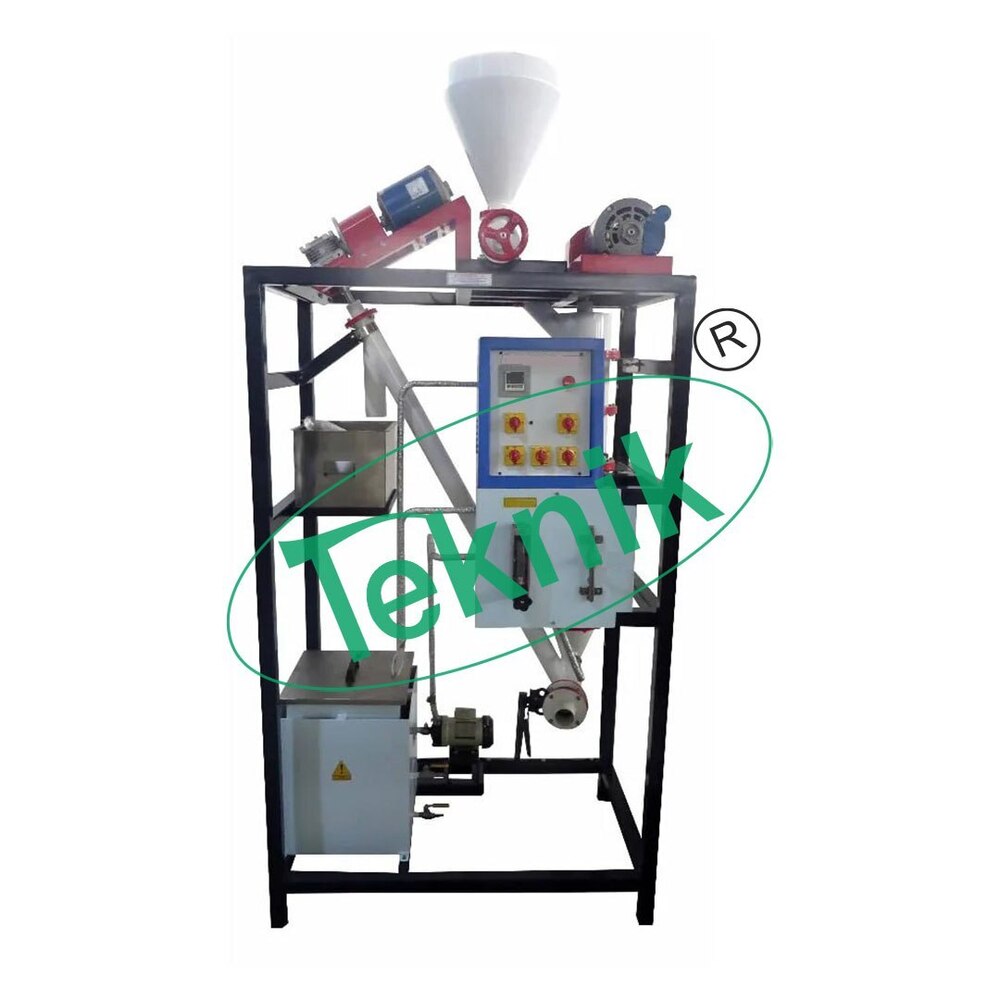

Solid-liquid Extraction (Bonnoto Type) - Application: Electrical Teaching Equipment

Specification:
Solid-Liquid Extraction (Bonnoto Type)
The setup consists of Bonnotto type extractor of slotted circular plates arranged one above the other in opposite radial opening.
It consists of a SS column, feed tank with heating arrangement, receiving tanks and piping. Rotameter is provided for flow measurement. The column is divided into multiple stages, each stage consists of a plate and a mechanical agitation section.
The circular plates are arranged one above the other in opposite radial opening, yield higher extraction efficiency than conventional packed column.
The solids are introduced at the top through a hopper spread over the top plate and pushed to slot to
fall to the next plate below and so on to the bottom of the column. The solvent is introduced near the bottom of the column, and it flow upward counter-currently to the solids.
A pump supplies the solvent and flow rate is monitored by means of a Rotameter.
At the bottom of column a screw conveyor arrangement is done to remove the extracted solids driven by means of an electric motor.
Solvent feed tank is kept in a bath fitted with heater.
A digital temperature controller is used to control and measure the temperature of feed
Technical Specification:
Electric supply: 1Phase, 220 V AC, 3 kW
Extraction Column: Material Stainless Steel Dia 150 mm, Height 500 mm (approx) fitted with Feed Hopper
Plates: Material Stainless Steel
Screw Conveyor: Housed in Pipe and motorized drive arrangement
Rotameter: Solvent Flow Measurement
Solvent Tank: Made of Stainless Steel, Capacity 20 Ltrs.
Double wall
Heater : Nichrome wire heater
Temperature Sensor : RTD PT-100 type.
Control panel:
Digital Temp. Controller : PID Controller, 0-199.9C, For Feed Tank
