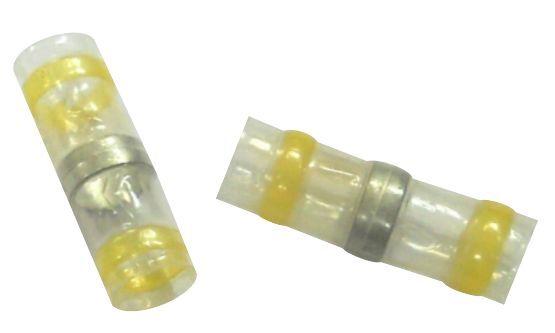

Heat Shrink Solder Sleeve For Wire Splicing (Gss-125 / Gss-150) - Armored Material: None
Get Latest Price
Brand Name :
Gala
In Stock
Product Specifications
| Number of Conductor | 1 |
| Cable Type | None |
| Conductor Type | Solid |
| Usage & Applications | Wire joining and sealing |
| Rated Temperature | 125AdegC |
| Installation Guideline | Insert stripped wires, heat until the solder flows and the end rings seal |
| Insulation | Heat shrink tubing |
| Size | Conductor diameter 0.7 to 13.0 mm (GSS-125); up to 22.0 mm with GSS-150-230 |
| Feature | 2:1 |
| Conductor Shape | Round |
| Core Material | None |
| Armored Material | None |
| Core Number | 1 |
| Product Type | Solder Sleeve |
| Length | Varies |
| Voltage | Other, Low voltage applications |
| Insulation Material | Other |
| Tensile Strength | 10.3 MPa min (ASTM D638) |
| Conductor Material | Copper |
| Application | Soldered, insulated and sealed wire splices in one heating step |
| Jacket Material | Other, Polyolefin |
| Storage Temperature | Normal storage range |
| Connector Color | Yellow |
| Shield Material | Solder core |
| Jacket Color | Other |
| Operating Temperature | GSS-125: -55 deg C to +125 deg C; GSS-150: -55 deg C to +150 deg C |
| Color | Clear sleeve; each size has a standard identification colour (white, red, blue or yellow, see size table) |
| Dimension (L*W*H) | Standard dimensions |
| Warranty | Varies |

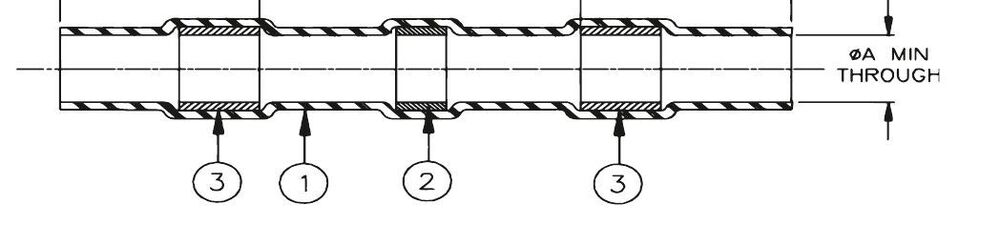

| Material | Transparent polyolefin heat-shrink sleeve, tin solder ring, thermoplastic heat-shrinkable sealing rings |
| Packaging Details | Bags of 100 (-017 to -045), 50 (-060 to -087), 25 (-107, -130) or 10 (-230) pieces |
