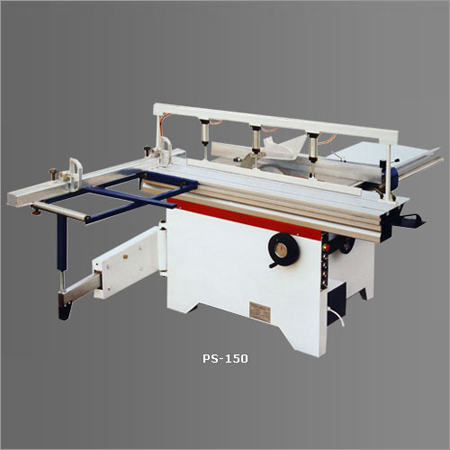

Sliding Table Saw (Mj6132b)

We are engaged in offering excellent quality Sliding Table Saw (MJ6132B) to our valuable clients.
Modern facility with top equipments such as MITSUBISHI, MAZAK, TRUNPF, NICOLAS CORREA,a etc. allowed
Precision machine parts like the rack, sliding table, saw stand, etc. and quality control by ourselves, details next to perfection.a
CNC machined saw stand proved precisely connection to the sawing unit, reduced the deflection of the concentricity during high speed running.
Automatic NC milling technology from Japan treating the sliding table top, ideal machining.
Two grooves for the sliding table guide rails are machined once at the same time, insured the accuracy and decreased accumulated tolerance of the guide rail installation.
Electro static powder coating line assures quality as well as efficiency.

Specification:-
* Max. working length : 3120mm
* Max. working thickness : 65mm
* Main saw size : I 305A I 30mm
* Scoring saw size : I 100A I 20mm
* Main saw spindle speed : 4000/5000r/min
* Scoring saw spindle speed : 9000r/min
* Main saw motor power : 5.5kw
* Scoring saw motor power : 0.75kw
* Total power : 6.25kw
* Dust exit : I 100A 1
* Net weight : 760kg
* Overall dimensions : 1200A 2060A 900mm.
