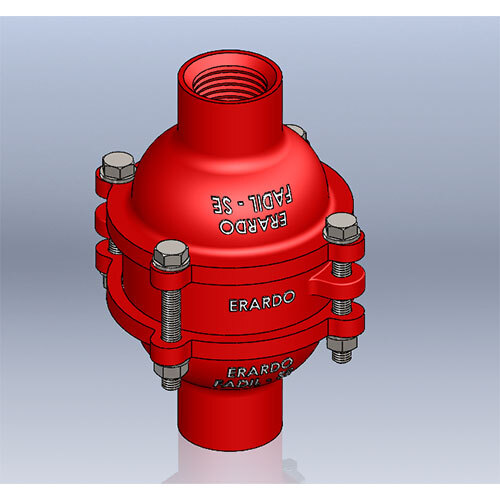

Screw End/thread End Inline Flame Arrester

Name: Screw End/Thread End Inline Flame Arrester
Price: 5900 INR
Availability: InStock

Price: 5900.00 INR / Piece

(5000.00 INR + 18% GST)

Get Latest Price

MRP:

5900.00 INR / Piece

Weight :

10.00 Kilogram

1 Pack Contains :

Minimum Pack Size :

In Stock

-1+

Technology	Inline flame arresting with deflagration protection
Shape	Cylindrical
Coating Type	Epoxy/Polyester powder coated or as per request
Control Type	Passive mechanical control
Operating Pressure	Up to 16 bar
Connectivity Type	Threaded
Fire Class	Suitable for Class B and C flammable gases
Installation Type	Inline screw/thread end installation
Coverage Area	Applicable to pipelines and process lines as per diameter

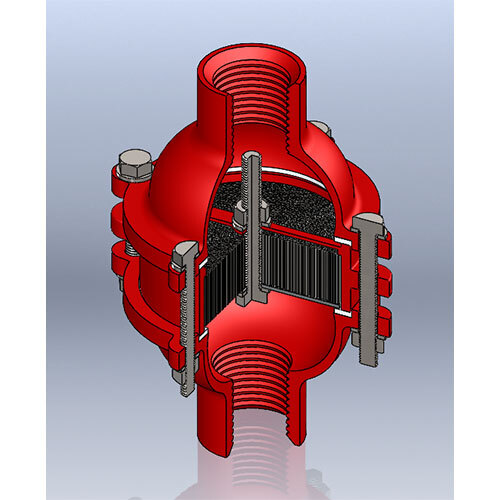

Features	Screw / Thread end connection, corrosion resistant, replaceable flame element, bi-directional flow, compact design, maintenance friendly
Fire Extinguisher Type	Flame arrester (passive suppression device)
Mounting Type	Inline, horizontal or vertical
Working Temperature	-20AdegC to +100AdegC
Application	Used for protection against flame transmission in gas piping systems, ideal for chemical, petrochemical, and refinery applications
Max Flow Rate	Up to 250 mA3/hr (varies by model)
Diameter	15 mm to 100 mm
Capacity	Suitable for continuous flow applications
Pressure	Up to 16 bar
Delivery Time	5 Days
Currency	INR
Pkg Box Height	10.00 inches
Moq	1
Stock Quantity	5
Returnable	No
Unit Type	Piece/Pieces
GSTIN	18%
Price Type	fixed
Pkg Box Length	12.00 inches
Price	5000.00 INR (Approx.)
Mop	1
Weight	10.00 Kilogram
Packsize	1
Shipping Type	actual
Pkg Box Breadth	15.00 inches
Brand Name	ERA TECHNOLOGIES
Product Unit	1 Piece/Pieces
MRP	5900.00 INR
Minimum Order Quantity	1
Minimum Ordered Packs	1
